FEATURES • Compact standalone detector readout electronics • POSIX SMP real-time OS • On-board MCA spectra • Waveform capture and Pulse Shape Analysis • Web interface • 10 Gbps Ethernet output for listmode data • Sub-nanosecond time resolution • C/C++ SDK for custom apps
|
|
OVERVIEW

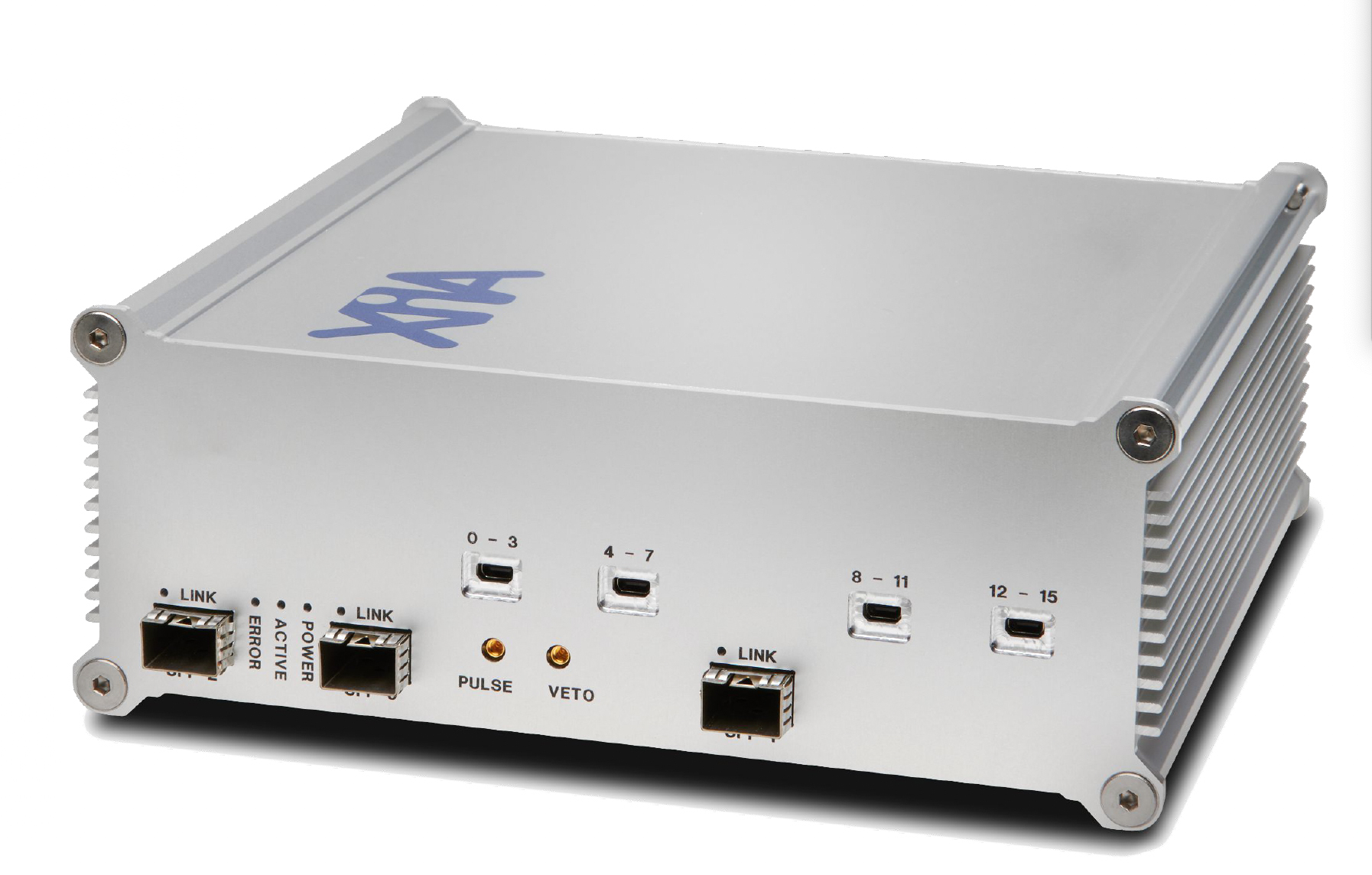

The Pixie Link is a multi-channel digital pulse processor designed for high-precision experiments using HPGe, scintillator, or silicon detectors. Besides nuclear spectroscopy, the Pixie-Net XL can be used for neutron/gamma discrimination, time-of-flight measurements, and coincidence/anti-coincidence measurements. Built on XIA's proven digital pulse processing, the Pixie Link combines an embedded POSIX SMB real-time OS with a high-speed FPGA. This combination provides you not only with energy and time, but also with digitized waveforms, CFD, and pulse-shape analysis. These data make the system capable of instrumenting nearly any experiment that requires robust data acquisition. The Pixie Link delivers a complete, network-integrated solution for demanding applications. It works with commercial off-the-shelf networking gear making integrating with existing networks much easier. The desktop form-factor makes the system easy to install near the detectors. Co-location shortens your cable lengths and can reduce your overall experimental costs.
APPLICATIONS
• Scintillator, HPGe, Si detectors
• Real-time Pulse-Shape Discrimination
• Clover detectors
• Distributed Data Acquisition
• Homeland Security
• OEM systems
• Remote monitoring
| ARCHITECTURE | |

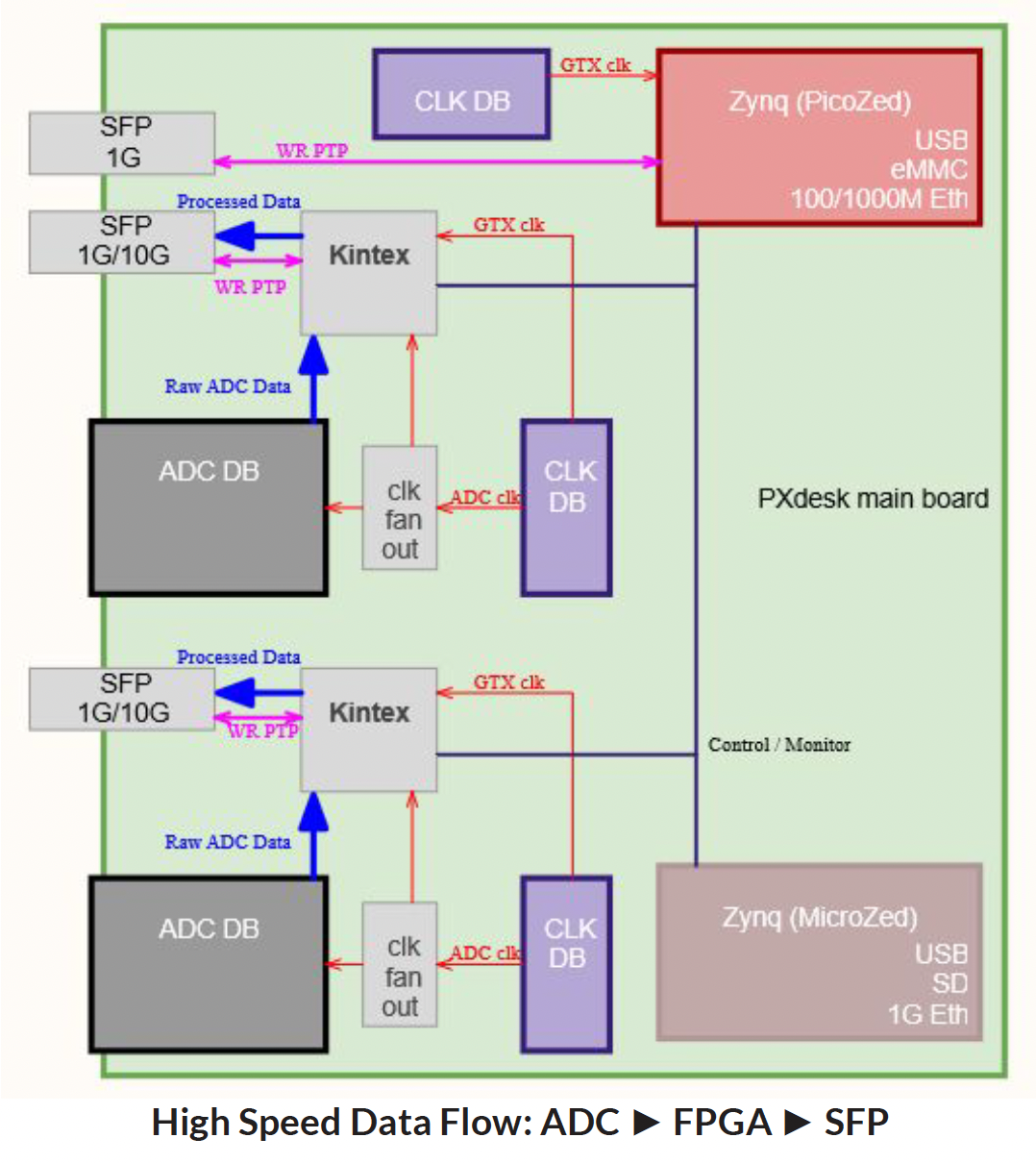

Two Signal Processing Units with • 8 channels, 14bit, 250 MHz, variable offset, fixed gain, 0.1" header input connectors • Total power consumption ~40 W Two Pulse Processing FPGAs With • High speed LVDS I/O to daughtercard • Dedicated SFP cage for 1 or 10 Gbps Ethernet (copper or optical) • 4 Gbit DDR3 SDRAM • List mode data output rates up to 500,000 events/s, 70 MB/s (1G) or 350 MB/s (10G) Embedded operating system • RTEMS • Embedded web page for monitoring and configuration • Gigabit Ethernet control network • 10 G SFP+ for list-mode data network |
|
Timing Performance

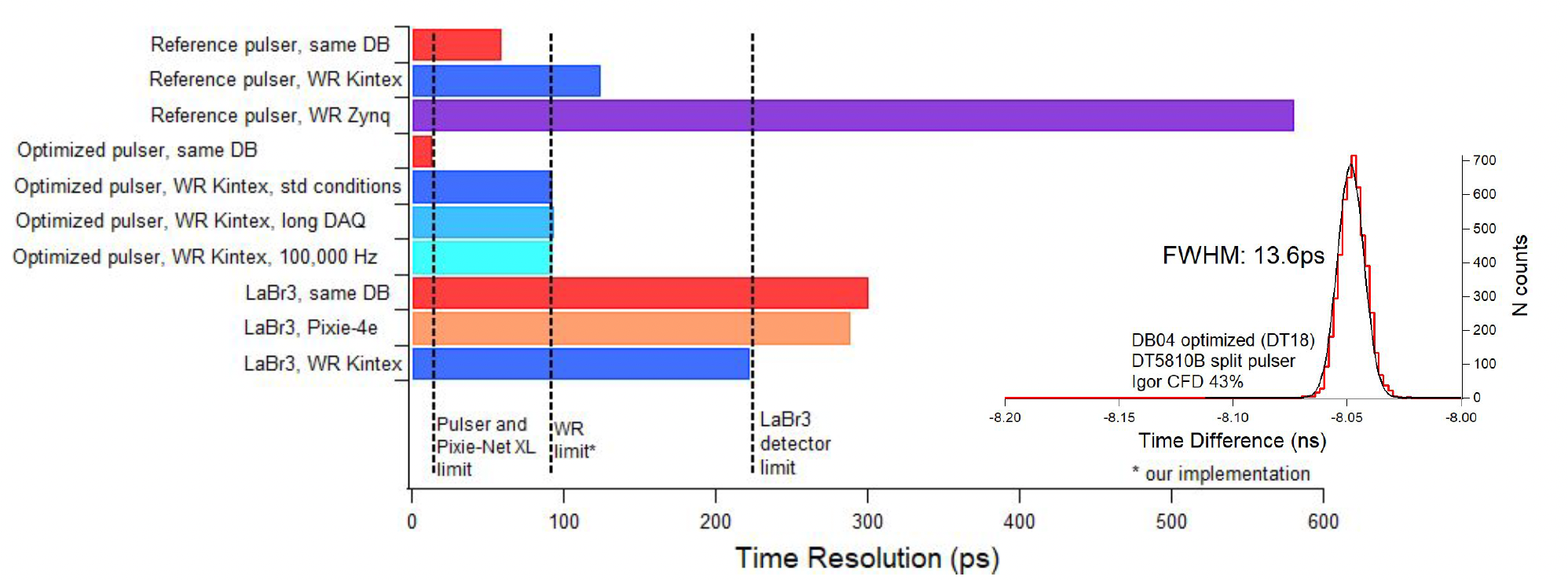

Summary of time resolution for split pulser and scintillator pair, same daughtercard or White Rabbit synchronization
