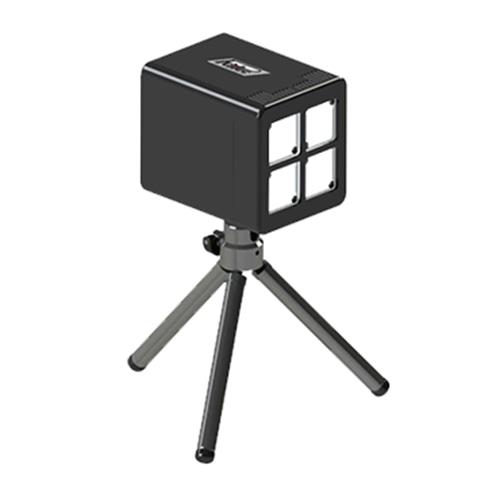

Clustered high efficiency gamma-radiation spectrometers MultiSPEC are based on application of the serial microspectrometers. It is an assembly of 4 serial microspectrometers combined by a special holder.

All microspectrometers work in parallel, creating one common spectrum. For the collection and processing of the obtained spectra a special MS Windows based GBS software WinSPECx16 is used. Clustered spectrometer is communicated and powered by a PC via USB port. Spectrometers holder can be mounted on a mini tripod.

                                      Total detector volume:

                                       MultiSPEC2000：2000 mm³ (4 x μSPEC500)

                                       MultiSPEC6000： 6400 mm³ (4 x μSPEC1500)

                                       Energy resolution (FWHM) at 662 keV:

                                       MultiSPEC2000： <2.5%

                                       MultiSPEC6000： <3%

                                       Power supply：USB, 4.5 V….5.25 V, 400 mA max

                                       Connector：micro USB, B type

                                       Dimensions(without USB cable and tripod)：

                                               66 mm x 75 mm x 88 mm

                                       Weight(without USB cable and tripod)：

                                               520 gram(with 4 x μSPEC500)

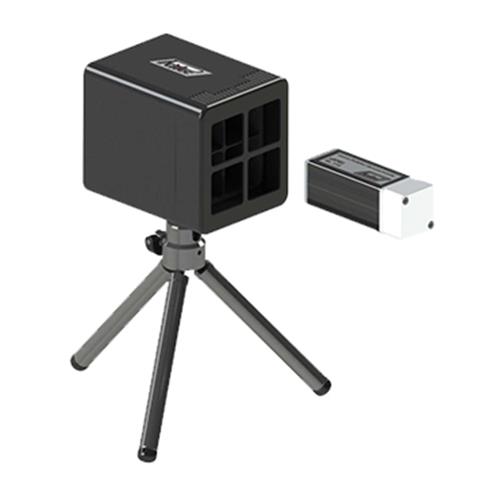

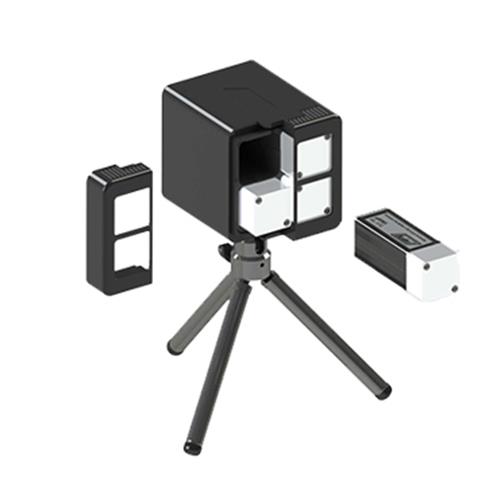

Holder for clustered microspectrometer with USB hub
