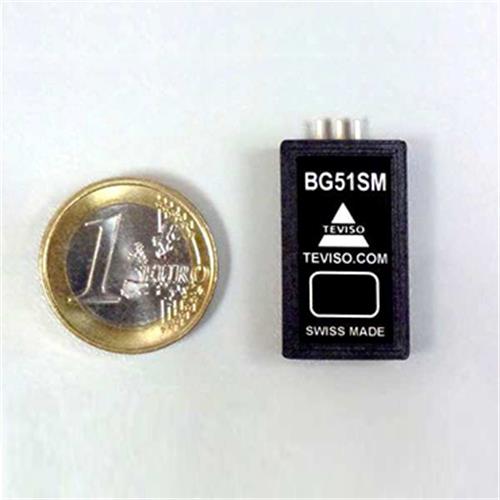

Radiation Sensor BG51
- Nuclear Beta and Gamma Radiation Sensor
- Ultra Low Power Requirement
Description The function of the BG51 radiation sensor is based on an array of customized PIN diodes. The integrated pulse discriminator with a temperature compensated threshold level provides true TTL signal output. The BG51 is capable of detecting beta radiation (electrons), gamma radiation (photons) and X-rays. The performance of the BG51 solid state sensor, in combinati -on with high immunity to electrostatic fields make it a good choice for new state-of-the-art designs as well as for upgrading existing designs. Features and Benefits · Detects beta and gamma radiation and X-rays · New: Ultra low power requirement (25μA) · Detector sensitivity: 5 cpm/μSv/h · High immunity to RF and electrostatic fields · Linear response over wide temperature range (-30°C to 50°C) · Swiss made Application Areas · Equipment for detecting radioactivity in medical environment · Radiation monitors for nuclear safeguards and security · Gamma detector to detect illicit nuclear material · Natural sciences courses and practical lab experiments
|
|

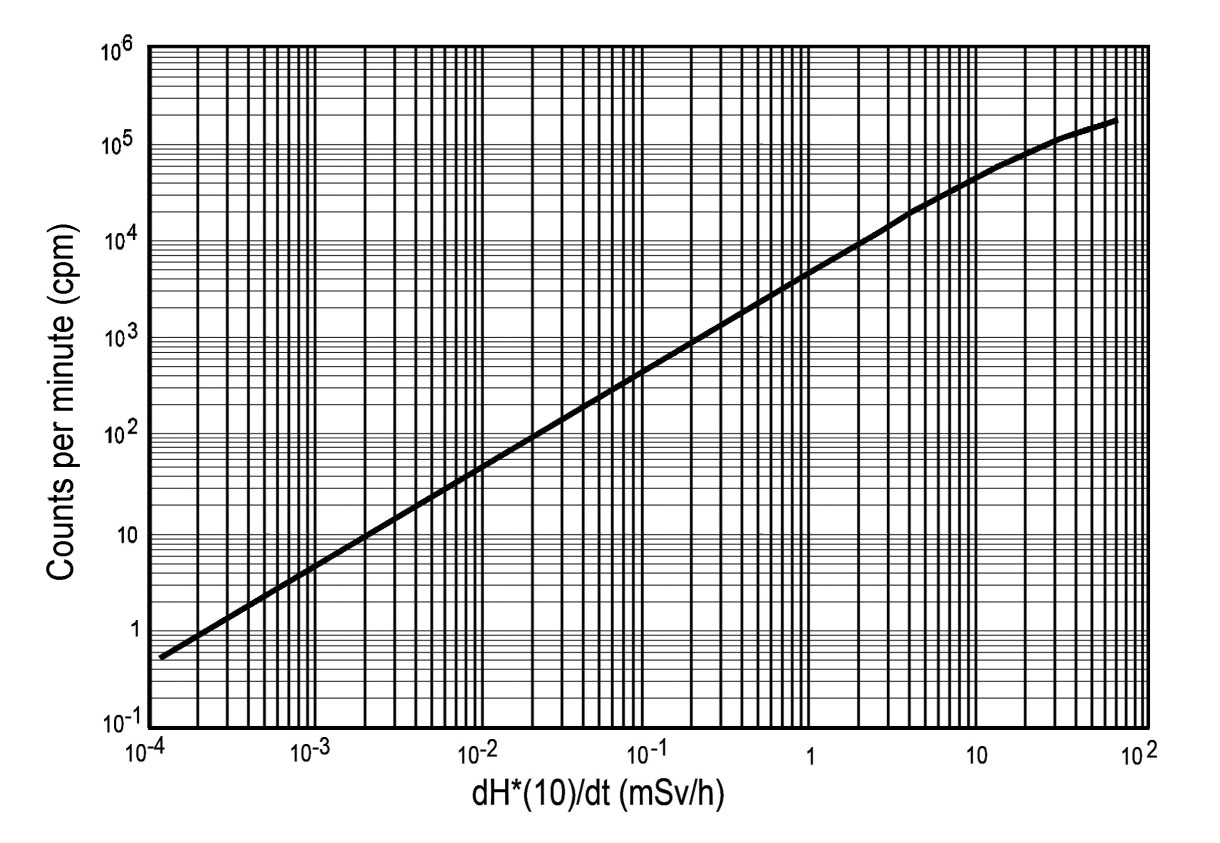

Electrical Characteristics Unless otherwise indicated specified at: VCC = 4.0V, TA = 25°C Measurement range of dose rate: 0.1 μSv/h to 100 mSv/h Pulse count rate: 5 cpm ± 15% for 1 μSv/h radiation dose rate Energy response :50 KeV to above 2 MeV Output pulse level :Equal to supply voltage (positive going) | Output pulse width :50 μs to 200 μs (LOW®HIGH®LOW) Supply voltage range:VCC 2.5V to 15.0V Supply current, Is :25μA TYP Operating temperature range: -30°C to 60°C |
