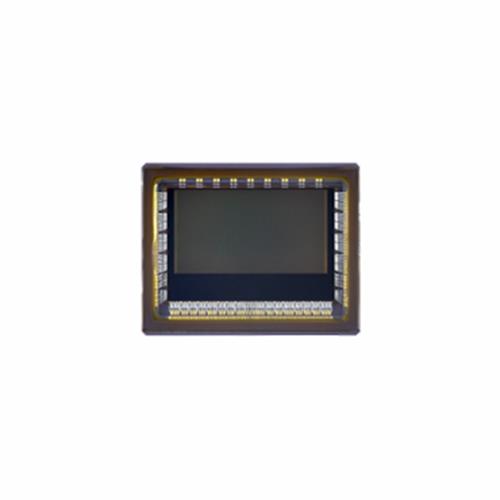

The LUXIMATM LUX2100 image sensor is a 2.1 Megapixel 1,000 FPS Global Shutter CMOS Digital Sensor developed for the high speed machine vision, barcode scanning, 3D scanning, automation, motion analysis, industrial and biomedical markets. It allows ease of integration and lower system noise with on-chip 12 bit ADC and 32 parallel data LVDS outputs. It can be windowed down to achieve frame rates of 700,000+ FPS. The sensor supports 8 simultaneous Region-Of-Interest readouts with flexible window positions. The user can obtain faster frame rates through X, Y windowing. Color and monochrome options are offered in a ceramic 203 uPGA package with a small footprint of 28.8 mm × 22.8 mm.
Specification | Description |
Optical Format | 4/3” |
Active Resolution | 1952 x 1096 pixels |
Pixel | 10.0 um pitch PPD shutter pixel |
Full Well | 20K e- |
Read Noise | 42 e- (input referred) |
Responsivity | 7.5 V/lux-sec @ 525nm typical without color filter |
Conversion Gain | 28 uV/e- |
Frame Rate | 1,000 FPS @ 1952 x 1080 |
Data Output | 32 LVDS channels @ 1,000 FPS |
Region of Interest | Windowing and up to 8 simultaneous ROI’s are supported |
Analog to Digital Converter | 12 bit |
Analog Gain Options | 1x – 6x |
Clock Rate | 75 MHz (Typical) |
Power Supply | 3.3V Analog, 1.8V Analog, 1.8V Digital |
Power Consumption | 3.9W @ 1,000 FPS full resolution |
Package Type | 203 Ceramic uPGA in a footprint of 28.8 mm × 22.8 mm |
Color Filter | Color or Monochrome |
