违禁物品检测设备 PM2030

产品详情

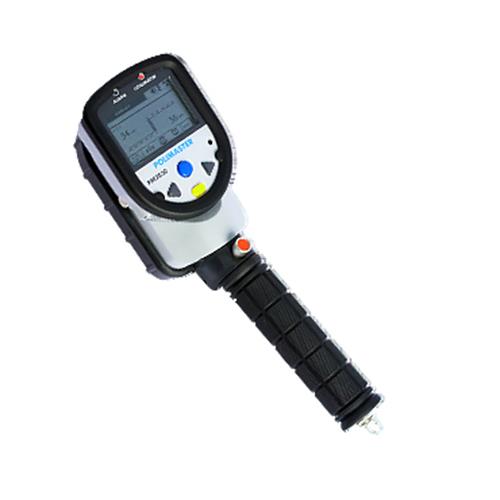

Contraband Detector PM2030

Contraband Detector PM2030 of nondestructive examination is a portable security instrument that detects hidden items (drugs, explosives, weapons, currency, etc.) within the closed cavities of transport vehicles, freight containers and other objects.

The instrument can be applied in impracticable for examination condition, where stationary examination equipment can not be used. The PM2030 indicates the presence of sealed radioactive material in any closed volumes (freight containers, automobile tires, doors, bumpers, fuel tanks, train carriages, etc).

PM2030 indicates the identified objects and forms the library. Due to modular design of the device and telescopic extension pole, hard-to-reach places and large objects can be scanned. For work in noisy places, vibration alarm from the handle is provided.

PM2030 can be applied  in Customs and Border Patrol, Police, Special Services, Security Offices.


peration Principle

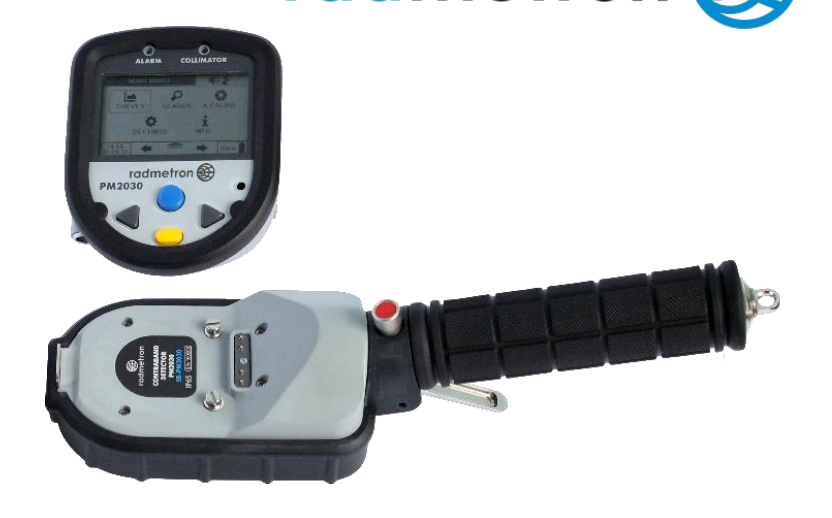

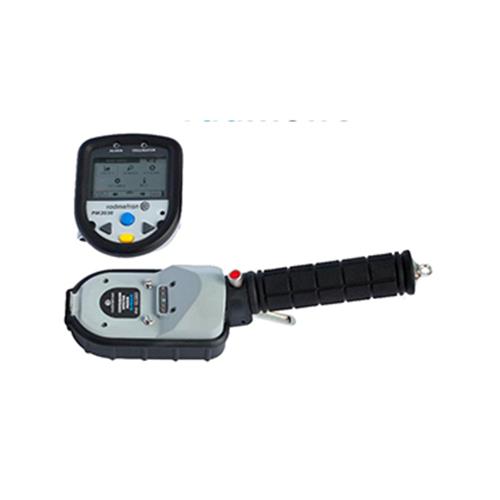

The Contraband Detector features the plastic case and consists of two units: display and control unit and scan unit with rubber handle.

 In operation mode the detector emits a beam of gamma radiation into the object being inspected and measures the backscatter. PM2030 features the build–in radiation source 133Ba with activity 320-370 kBq. The source is housed within the lead safety container-collimator of the scan unit.



The intensity of the backscatter depends on the object features (its density and size). The device is moved along the surface of the object. The change in the density of the object is displayed on LCD and accompanied with light, sound and vibration alarms. The frequency of alarm repetition depends on the size and density of the detected cavity of items.



The lead container-collimator provides the necessary narrow zone of the object radiation during examination and complete protection of the operator from gamma radiation.



截屏2022-09-08 16.45.23.png



Scanning Mode

The Contraband Detector in the SURVEY mode detects (detection probability 0.5, confidence probability 0.95, when moving the instrument with no more than 5 сm/s speed) the objects sealed behind a steel partition of 1 mm thick or behind a wooden partition of 20 mm thick:

  • aluminium  30х30х30 mm

  • polyethylene  70х70х20 mm

  • steel  30х30х10 mm

       截屏2022-09-08 16.45.42.png                                     截屏2022-09-08 16.45.50.png


The instrument in the SURVEY mode in a static position detects the objects sealed behind a wooden or plastic partition of no more than 20 mm thick with 0.5 probability, as well as defines the metals group or plastic. The defined material name (metal group or plastic) is displayed on the LCD. The objects dimensions should be no more than:



  • polyethylene block  70х70х20 mm

  • steel block 70х70х5 mm

  • sheet of silver group 70х70х0.5 mm

  • sheet of lanthanum group 70х70х0.5 mm

  • sheet of tungsten group 70х70х0.5 mm

  • sheet of gold group 70х70х0.5 mm

  • sheet of lead group 70х70х5 mm


 Characteristics


Detector

Csl with solid electronic multilpier

  Alarm Type

Audio, visual, vibration

  Ingress protection

IP65

  Power supply

Two AA (LR6) standard batteries of voltage 3.0 (-0.6; +0.2) V or two rechargable batteries of voltage 2.6 (-0.2; +0.2) V; from USB of PC; from car`s lighter socket via USB adapter 220V/12V

  Battery Lifetime

up to low battery warning indicationno less than 50 hours

  Built-in sealed gamma radiation source     based on radionuclide 133Ba with activity   and dimensions, no more

from 320 to 370 kBq Ø3 mm, h = 3 mm

  Weight

1.13 kg

  Operating temperature

- 30 up to 50 °C

  Atmospheric pressure

from 84 up to 106.7 kPa

  Dimensions

284х87х98 mm

  Humidity

up to 98% (at 40°C and at a lower)

  Sensitivity to gamma-radiation in energies  range from 0.02 to 1.5 MeV, at least

for 109Cd at distance 10 сm from detector geometric center2600 (cps)/(МBq)for 57Co at distance 10 сm from detector geometric center6500(cps)/(µSv/h)for 241Am5000(cps)/(µSv/h)for 137Сs300 (cps)/(µSv/h)for 60Co140 (cps)/(µSv/h)

  Mean service lifetime

for at least 10 years

  Ambient dose equivalent rate of gamma-radiation

without gamma-background at closed collimator0.2 µSv/h

  Data recording

at least 1900 history events

  Depth of scanning

up to 150 mm

  Mean recovery time

no more than 60 min

  Mean time between failures

at least 20 000 hours

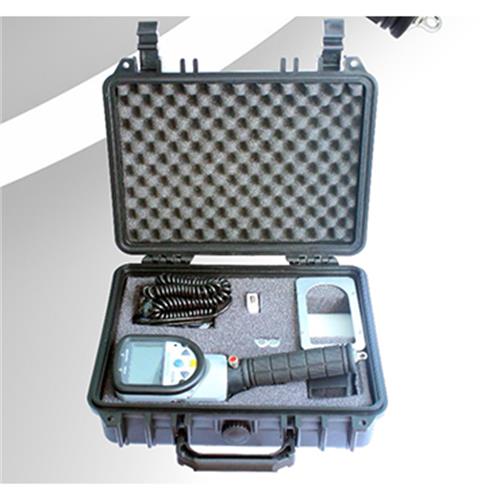

  Optional accessories

Telescopic extension pole1.7 mTelescopic extension pole3.6 mOthershoulder belt / wrist lanyard / replacement holster

  Registration range of gamma radiation count rate

from 1 to 65000 cps
