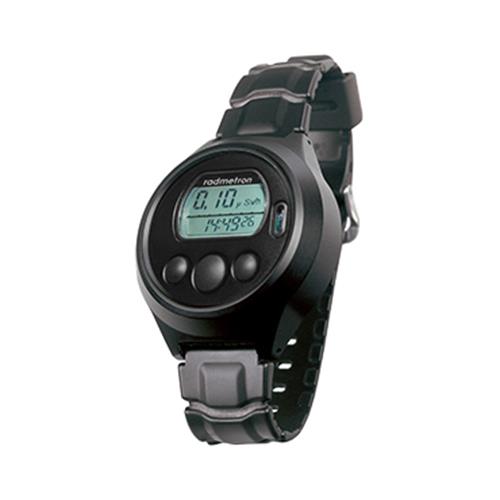

Wrist Gamma Dosimeter РМ1603
Dosimeters perform monitoring and measurement of dose equivalent and dose equivalent rate in the wide energy range - from 1 mSv/h up to 5.00 Sv/h (for PM1603A) and from 1 mSv/h up to 10.0 Sv/h (for PM1603B). Instruments have two thresholds in DER and DE ranges and non-volatile memory for data storage. Hermetic, water-resistant and shockproof case and the fluorescent backlight on LCD screen allow to use instruments in harsh and extreme conditions.
PM1603A and PM1603B dosimeters are recommended for emergency services, customs and border patrol, radiological and radioisotope laboratories, medical professionals, personnel of nuclear facilities, civil defense, firefighters and police.
Operation Principle
PM1603A and PM1603B models are energy-compensated wrist dosimeters of pocket size that measure personal dose equivalent (DE) and personal dose equivalent rate (DER) of both gamma and X-ray radiation. Dosimeters have two alarm thresholds. If the preset dose and dose rate thresholds are exceeded, instruments immediately alert the user through an audible alarm. Dosimeters store up to 1000 events in non-volatile memory and transmit all recorded data via an infrared channel to a PC for further processing and analysis.
Network Functions
Dosimeters can be integrated into Personal Dose Tracker System developed by Polimaster for continuous account for external radiation exposure, maintenance of dose history database and calculation of the personnel accumulated doses (individual as well as group doses) during the set period of time, automated preset threshold (individual as well as group thresholds) alarm signal.
Detector | Geiger-Muller tube |
Dose equivalent (DE) measurement range | 1.0 μSv - 9.99 Sv |
Dose equivalent rate (DER) measurement range | 1 µSv/h – 5.0 Sv/h |
DE indication range | 0.01 μSv – 9.99 Sv |
DE measurement accuracy | ± 15 % |
DER measurement accuracy | ±(15 + К1/Ḣ+ К1Ḣ) %, where Ḣ = DER value, mSv/h; К1 = coefficient equal to 0.02 (mSv/h); К2 = coefficient equal to 0.003 (mSv/h)-1 |
Energy range | 0.048 – 3.0 МeV |
DER indication range | 0.01 µSv/h – 6.50 Sv/h |
Energy response relative to 0.662 MeV 137Cs, no more than | ± 30 % |
Alarm Type | audible |
Drop test on concrete floor | 0.7 m |
Ingress protection | IP67 |
Power supply | (2,95 ± 0,25)V (one battery, type CR2032) |
Battery Lifetime | |
using LCD backlight not more than 5 s/day, audible alarm – not more than 20 s/day and at an average value of the measured DER up to 0.3 μSv/h, at least | 9 months |
Additional functions | Clock-calendar mode (time, date), timer mode (set of time intervals) , stop-watch mode (measurement of time intervals) |
Weight | 0.085 kg |
PC communication | IR adapter |
Operating temperature | - 50 up to plus 50 °С |
Atmospheric pressure | from 84 up to 106.7 kPa |
Dimensions | 50 х 56 х 19 mm |
Humidity | to 100 % at 40 °С |
Mean service lifetime | 8 years |
