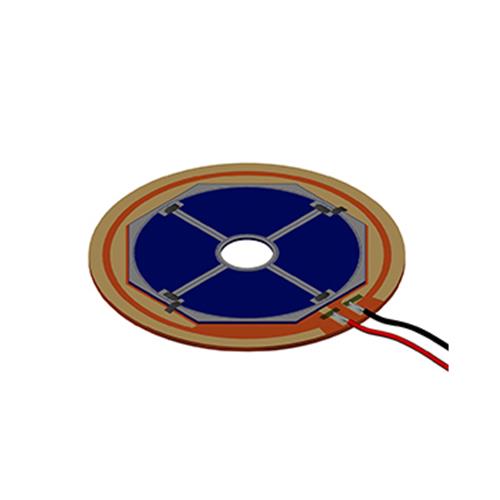

SILICON DETECTOR TYPE: ANNULAR DETECTORS
TECHNOLOGY: 3, 4 & 6 INCH SILICON
DESIGN: Annular quadrants, bullseyes and dual element detectors with thin entrance window suitable for low energy electron detection from 1 KeV in electron microscopes.
DESIGN
DETECTOR DESIGN | LL2 |
NUMBER OF ELEMENTS | 4 Quadrants |
INNER ACTIVE AREA DIAMETER (mm) | 6.858 |
OUTER ACTIVE AREA DIAMETER (mm) | 24.13 |
CHIP DIMENSIONS (mm) | 25.35 Flat-to-Flat (8 sided) |
Hole Ø (mm) | 5.600 |
JUNCTION WINDOW IMPLANT OPTIONS | 2 / 7 / 9 |
JUNCTION WIDNOW METAL OPTIONS | M |
OHMIC WINDOW | 2M |
PACKAGE | STANDARD FR4 |
