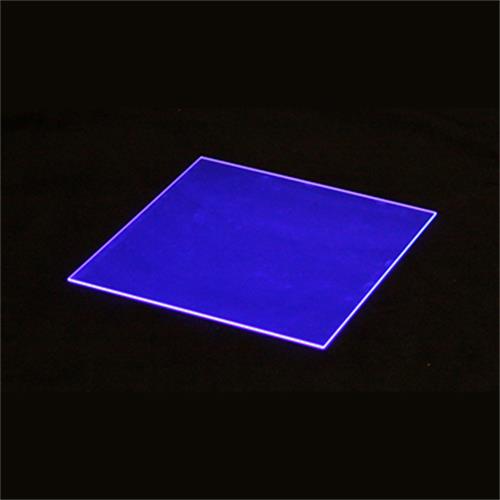

Formerly known as EJ-299-07, this special plastic scintillator has been formulated specifically for use in ultra-thin films employed for heavy ion studies and beam monitors. The formula contains a very high concentration of the waveshifting dopant to efficiently absorb and shift the primary scintillation light, which is in the UV range. The plastic base is PVT, and the films are suitable for use in high vacuum. They may be mounted to light guides with optical epoxies or silicone greases. Cleaning is best done with isopropyl alcohol.
PROPERTIES | EJ-214 |
Scintillation Efficiency (photons/1 MeV e-) | 9,000 |
Wavelength of Maximum Emission (nm) | 435 |
Decay Time (ns) | 2 |
No. of H Atoms per cm3 (x1022) | 5.18 |
No. of C Atoms per cm3 (x1022) | 4.67 |
No. of N Atoms per cm3 (x1019) | 4.89 |
No. of O Atoms per cm3 (x1019) | 2.59 |
No. of Electrons per cm3 (x1023) | 3.27 |
Density (g/cm3) | 1.02 |
Softening Point (°C) | 60 |
