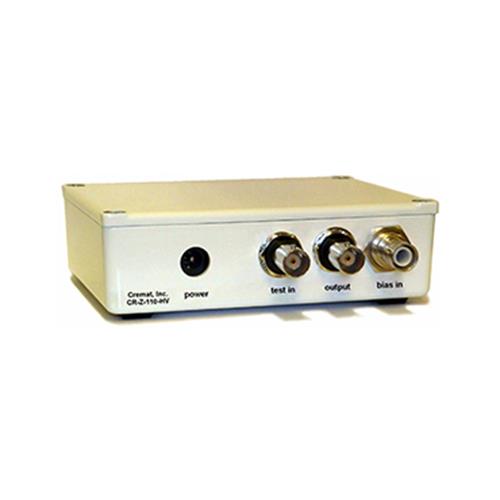

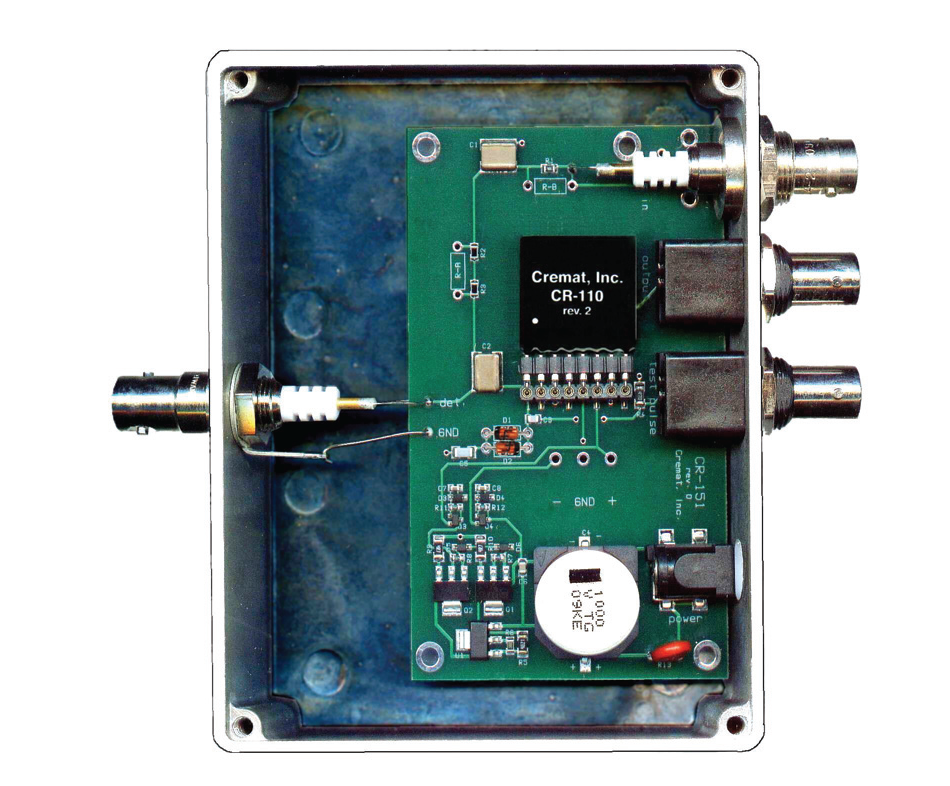

The CR-Z-110 and CR-Z-110-HV are charge sensitive preamplifier (CSP) instruments,based on Cremat's CR-110 CSP module. The CR-Z-110 has BNC connections for detector input, test input, preamplifier output, and detector bias supply. The CR-Z-110-HV is identical to the CR-Z-110 except that SHV connectors are used in place of BNC connectors in the detector input and detector bias supply connections. The CR-Z-110-HV is recommended when the applied detector bias exceeds +/- 500V.Maximum detector bias voltage using the CR-Z-110-HV is +/- 2000V.
Preamplifier Specifications Assume temp =20 ℃, unloaded output | |
Equivalent noise charge (ENC)* | 270 electrons RMS 0.04 femtoCoul. RMS |
Equivalent in silicon detector: | 2.3 keV (FWHM) |
Equivalent in CdZnTe detector: | 3.2 keV (FWHM) |
ENC increase per added input capacitance | 4 electrons RMS /pF |
Gain | 1.4 V / picoCoul. 62 mV /MeV(Si) |

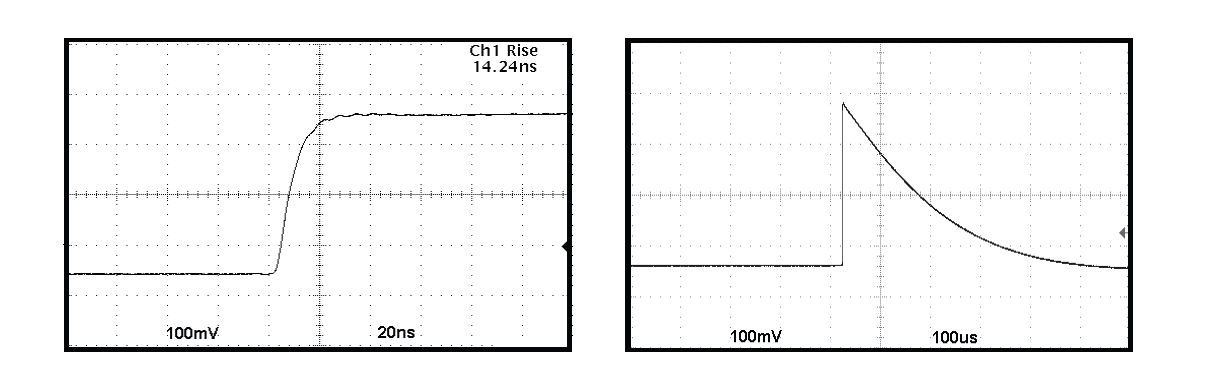

Rise time ** | 15 ns |
Decay time constant | 140 μS |
Maximum charge detectable per event | 1.3 x107 electrons 2.1 picoCoul. |
Operating temperature | -40 to +85 ℃ |
Output impedance | 50 ohms |
Output voltage swing | -3 to +3 volts |
