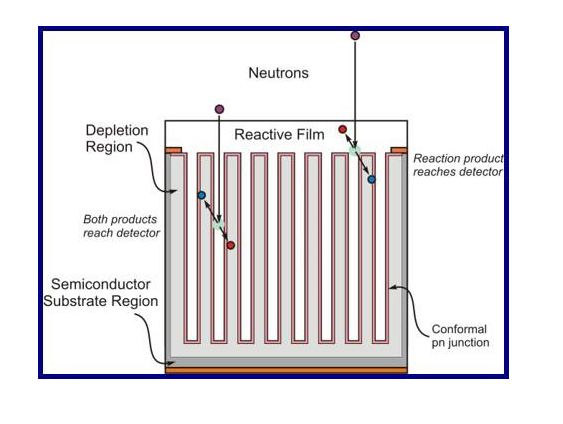

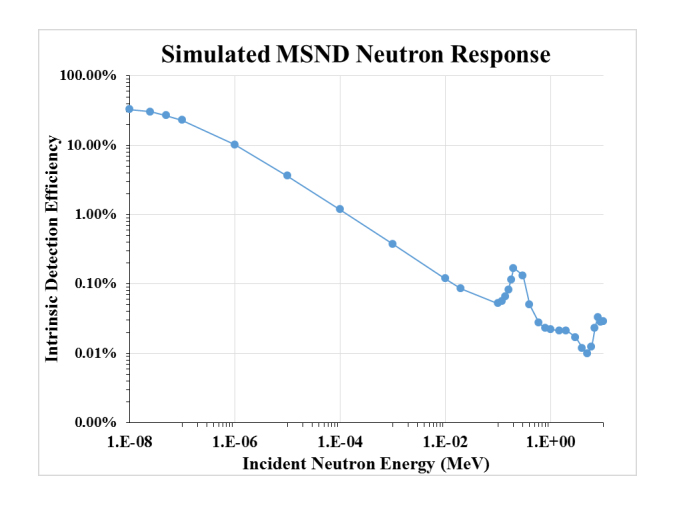

The MSND® technology implements Li6 conversion to yield a thermal neutron detection efficiency of 30%. Optimum HDPE moderator for Cf252 neutron source at 1-m is 3-4 cm in front and 3-6 cm behind the MSND® sensor.
Features:

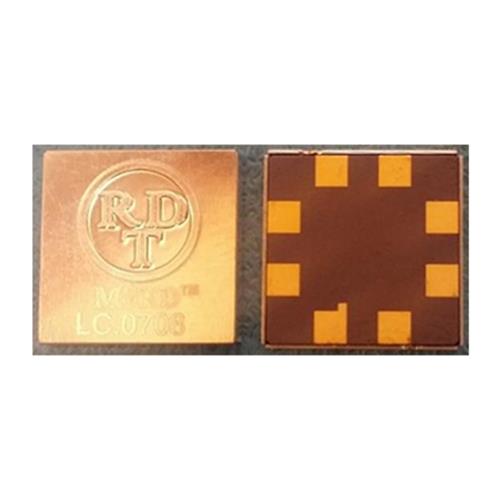

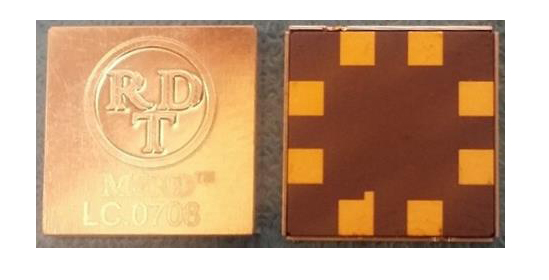

• Surface mount ceramic package
• Nickel Silver RF integrated shielding
• Thin form factor
• Dimensions: 12.6 x 12.6 x 2.4 mm
• 20-30% thermal neutron efficiency
• Low power
• Low voltage
• Solid State
• 1-cm^2 active area
Solid-State Neutron Detection Applications:
Neutron detector applications include those for homeland security (e.g., border screening), fundamental research (e.g., neutron scattering beamlines), and industrial monitoring (e.g., personnel monitoring, water content in soil). Solid-state neutron detectors provide an alternative to the 3He-based detectors, maintaining a high thermal-neutron detection efficiency, at a fraction of the volume, mass, voltage, and power required from gas or liquid detectors. Recommend AC coupling to electronic readout circuit.
ABSOLUTE MAXIMUM RATINGS (Ta = 25°C) | ||||||
PARAMETER | SYMBOL | VALUE | UNIT | |||
Reverse voltage | VR | 50 | V | |||
Operating temperature range | Tamb | -40 to 60 | °C | |||
Storage Temperature | Tstg | -40 to 100 | °C | |||
BASIC CHARACTERISTICS (Ta = 25°C) | ||||||
PARAMETER | TEST CONDITION | SYMBOL | MIN | TYP | MAX | UNIT |
Forward Voltage | IF = 50mA | VF | 1.05 | V | ||
Breakdown Voltage | IR = 50μA | V(BR) | 28 | 60 | >110 | V |
Diode Capacitance | VR = 0V, f = 1MHz, E = 0 | CD | 374 | pF | ||
VR = 5V, f = 1MHz, E = 0 | CD | 121 | pF | |||
Leakage Current | VR = 3V | IL | 3 | 8 | 20 | nA |
Leakage Current | VR = 5V | IL | 17 | 31 | 240 | nA |
Operating Voltage | Recommended | VR | 1 | 2.5 | 5 | V |
Est. Average Charge Per Neutron Capture | Qav | 80 | fC | |||
BASIC CHARACTERISTICS (Ta = 55°C) | ||||||
PARAMETER | TEST CONDITION | SYMBOL | MIN | TYP | MAX | UNIT |
Leakage Current | VR = 2V | IL | 500 | 550 | 600 | nA |
Leakage Current | VR = 3V | IL | 600 | 750 | 850 | nA |
BASIC CHARACTERISTICS (Ta = 60°C) | ||||||
PARAMETER | TEST CONDITION | SYMBOL | MIN | TYP | MAX | UNIT |
Leakage Current | VR = 3V | IL | 1000 | 1150 | 1500 | nA |
