Main Features
· Extremely solid construction, prepared for rear-side plug-in power supply
· 7U bin UEN 01 for 12 NIM slots with 2 U fan tray space
· Intelligent fan tray with 3 controlled DC-fans (variable fan speed) for UEN 01 bin only
· 3 status LED´s and high visibility alpha-numeric display / diagnostic system
· PS/CS236: micro-processor controlled, high precision, low-noise switching power supply with programmable voltage and current limits, 1920W DC output, all 6 DC voltages +/-6V, +/-12V,+/-24V provided Power supplies to
be plugged-in to the rear of the NIM bin for easy exchange
· All CE power supplies have separated and improved AC to fan connection
Current maximum ratings:
Voltage Line | Current / slot | Current / bin | Comment |
+/-6V | 13A | 65A | sensed |
+/-12V | 13A | 26A | sensed |
+/-24V | 13A | 13A | sensed |
GND | 13 | ||
115V AC | 0.5A | Secondary |
All NIM bins have clean earth wired with 0,25mm²

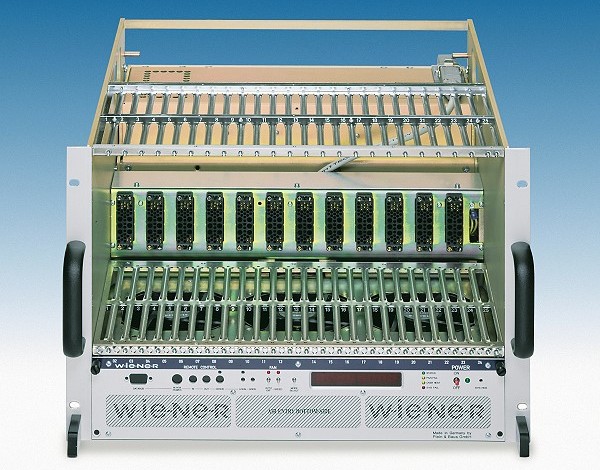

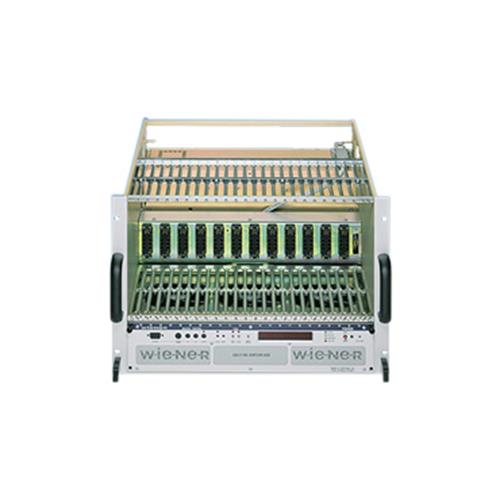

UEN 01 / CEN 03 NIM Bins
· 7U bin UEN 01 for 12 NIM slots with 2 U fan tray space
· Extremely solid construction, prepared for rear-side plug-in power supply
· 12 wired NIM connectors with long life - high quality massive, gold plated contacts
· CERN compatible bin mechanics and wiring
· UEN 01 dimensions: 19” (483mm) x 7U (311.2mm) x 530mm [whd], weight: ca. 5 – 6 Kg

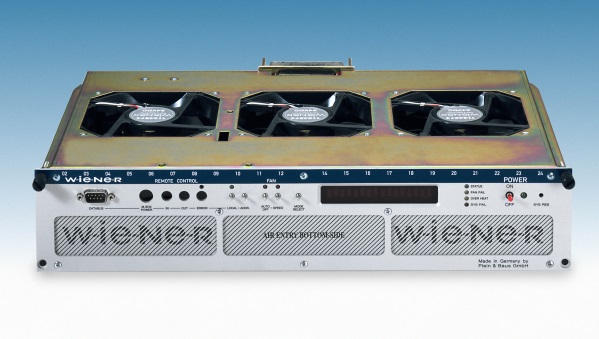

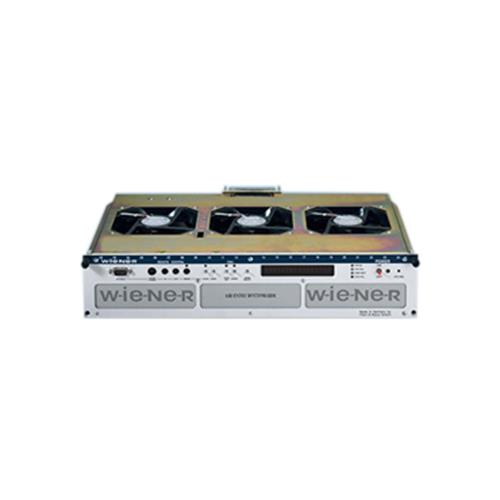

UEL/CEL 03M Fan Tray
· Intelligent fan tray with 3 controlled DC-fans (variable fan speed) for UEN 01 bin only
· 3 status LED´s and high visibility alpha-numeric display / diagnostic system
· Optional CAN-bus, HS CAENET or GPIB interfaces for crate remote control
· CE version with separated AC wiring to power supply
· Dimensions: 19” (483mm) x 2U (86mm) x 260mm [whd], weight: ca. 5 Kg

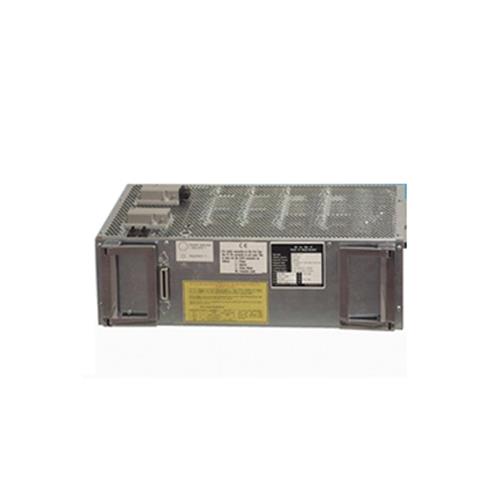

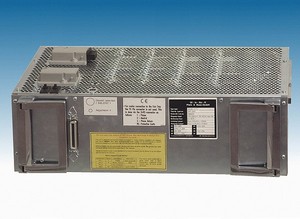

PS/CS336 NIM CERN/CE 1920W Power Supply
· micro-processor controlled, high precision, low-noise switching power supply with programmable voltage and current limits, 1900W DC output, all 6 DC voltages +/-6V, +/-12V, +/-24V provided , (no 115VAC!)
· Power supplies are plugged-in to the rear of the NIM bin for easy tool free exchange
· All power supplies are protected against short circuit, over / under voltage and over temperature
· Equipped with status control and CERN-spec. monitoring output (PG28)
· 100V, 110V, 220V or 240V 50Hz/60Hz AC input (to be selected / changeable)
· CS236 dimensions: 429mm x 133mm x 220mm [whd], weight: 12.9kg
· CE conform versions provide improved AC wiring.
