DESCRIPTION

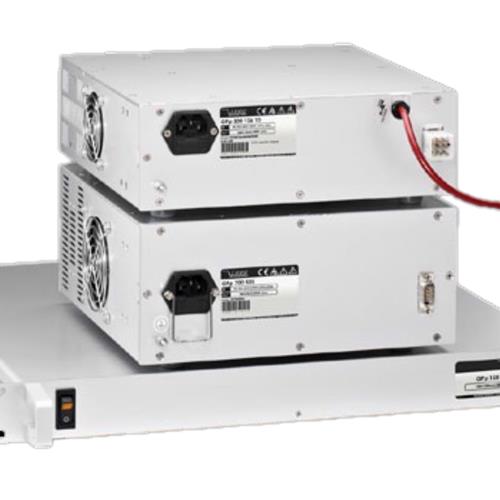

Devices of GPS series are analog controlled AC driven high voltage power supplies with a high power density at best output characteristics. Due to a wide range of customization possibilities, these devices are the perfect choice to match fixed requirements at a very reasonable price.
· 300 W-4 kW / 1kV - 70 kV versions.
· 19“ case / compact box / custom specific.
· best control characteristics.
· analog I/O.
· capacitor charger option (CLD).
· ARC management option (ARC).
· very low ripple and noise, very low EMI.
· high efficiency up to 85%.
SPECIFICATIONS | ||||
GPS COMPACT 350 W | GPS 300 W | GPS 800 W | GPS 4 kW | |
Polarity | factory fixed, positive or negative | |||
Ripple and noise [f >10 Hz] | < 2 • 10-3 • Vnom | < 1 • 10-4 • Vnom [Vnom ≤ 8 kV] < 5 • 10-4 • Vnom [Vnom > 8 kV] | < 3 • 10-2 • Vnom | |
Stability | 0.02 % * | 0.05 % * | ||
Voltage regulation [ΔVout / ΔVin] | 0.02 % [Vout ≥ 5 V] | 0.01 % [Vout ≥ 5 V] | 0.02 % [Vout ≥ 5 V] | |
Temperatur coefficient | < 2 • 10-4 / K | |||
Supply voltage | 85 - 264 VAC with PFC | 190 - 264 VAC with PFC | ||
Set / monitor voltage | 0 - 5 V | opt. 0 - 10 V | |||
Protection | overload, ARC and short circuit protected, INHIBIT, overvoltage/overtemp protection | |||
Case | metal box | 19“ 1U rack mountable | 19“ 3U rack mountable | |
Dimensions (L/W/H) | 254/254/81-106 mm | 410 mm / 19“ / 1U | 410 mm / 19“ / 3U | |
(* for 8h, after 0.5h warmup | ||||
ORDER & OPTIONS | ||||
OPTION | ORDER INFO | EXAMPLE | ||
Polarity | positive: x = p, negative: x = n | GPp 10 307 5 | ||
Remote / monitor voltage | 0-5 V (standard): y = 5, 0-10 V (optional): y = 10 | GPp 10 307 10 | ||
Capacitor charger | CLD | |||
ARC management | ARC | |||
Note: other product confi gurations and customizing on request | ||||
Warm prompt：
Devices of GPS series, the maximum voltage can be up to 70kv, the maximum power can be up to 4kw as well. Model selected will be subeject to the voltage range, power, and dimension. Please feel free to contact us , if you would like to looking for the most suitable one, thank you!
