DESCRIPTION
This crate device is used operating iseg High Voltage power supply modules in a 19“ rack compatbile case. Depending on version it provides module slots for up to 10 MMS LV compatible Low Voltage and also HV compatible High Voltage modules or mixed setups. Each module is connected to a backplane of the crate by a vendor specific connector, which delivers module power supply and CAN based digital interface connection.
Depending on module’s features further digital and analog signals are provided by the connector (safety loop, thermal sensors etc.). For control and network communication of the MMS modules a crate controller needs to be plugged into a special Crate Controller Slot. The ECH 5xA is compatible with iseg CC24 Master, CC23 Slave Controller and Wiener MPOD controller. The CC24 Master controller is equipped with integrated Linux server, hardware running iseg iCS System, ethernet and optional WiFi connectivity. Up to eight CC23 Slave controller can extend a CC24 system by using galvanically isolated CAN connections and auto adressing.

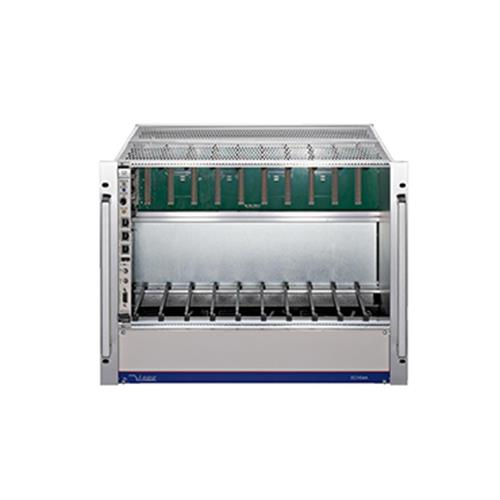

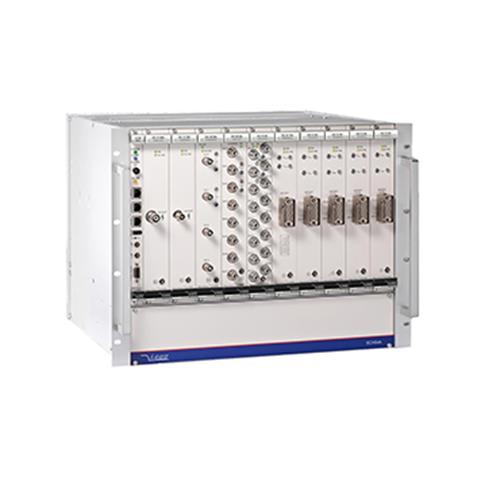

10 Slot 19” Crate for MMS – Low and High Voltage Power Supply Modules.
• Up to 10 MMS-HV or MMS-LV Power Supply Modules.
• Up to 3,000 W power.
• wide range of HV- and LV-modules.
• compatible to CC24 / CC23 Controller boards with integrated iCS Linux Server or Wiener Mpod Controller.
• optional UPS.
• robust mechanics, module front and back reversible.
Technical dataSPECIFICATIONS / SPEZIFIKATION
SPECIFICATIONS | ECH 54A | ECH 55A | ECH 56A |
Slots | 10 x MMS modules and 1 x MMS controller | ||
High / Low Voltage Boards | MMS HV only | MMS LV only | MMS HV and LV Boards |
Rated AC mains input | 100-240 VAC with PFC | ||
AC power connector | Hirschman Schuko 1x16A | ||
HV module supply voltages | +24 V | Not installed | +24 V |
DC output power HV module supply | 1,200 W (on request from 600W up to 3,000 W) | ||
Cooling | Vertical, integrated fans , bottom air intake | ||
Operation temperature | 0 … 50°C ambient without derating | ||
Storage temperature | -30 °C ... +85 °C (+55°C with UPS option) | ||
Stability | 10 mV or 0.1% / 24 hours,25 mV or 0,3 % / 6 month under constant conditions | \ | \ |
Floating DC Power Supply | ± 50V | \ | ± 50V |
M.F.O.T. Maintenance Free Operation Time | Internal fans: 40°C ambient : > 65,000 h, 25°C ambient : 100,000 h,electronics: 40°C ambient : > 100,000 h | ||
Dimensions (L/W/H) | 463mm / 19“ / 8U | ||
Weight | 31,5kg, (+ 10 kg with UPS option) | ||
Order options | |||
OPTION | ORDER CODE | ||
Uninterruptible power supply 1200W | -UPS | ||
Module cage reversed, module insertion from rear | -HVR | ||
