DESCRIPTION
These crate devices are used for operating iseg high voltage power supply modules in a desktop compatbile case. Up to 4 slots for MMS high voltage modules are provided. Each module is connected to the backplane of the crate by a vendor specific 96 pin connector, which delivers module power supply and CAN based digital interface connection. Depending on modules features further digital and analog signals are provided by the connector (safety loop, thermal sensors etc.). For control and network communcation of the MMS modules a crate controller needs to be plugged into the special Crate Controller Slot. The ECH 242 / 244 is compatible with iseg CC24 Master and CC23 Slave Controller. The CC24 Master controller is equipped with integrated Linux server hardware running iseg iCS System, ethernet and WiFi connectivity. Up to eight CC23 Slave controller can extend a CC24 system by using galvanically isolated CAN connections and auto adressing.

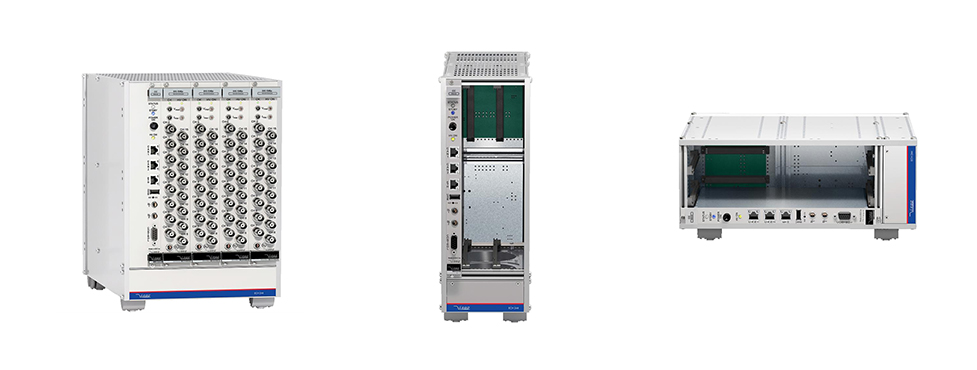

2 / 4 Slot MMS-Crate Series for iseg MMS High Voltage Power Supply Modules.

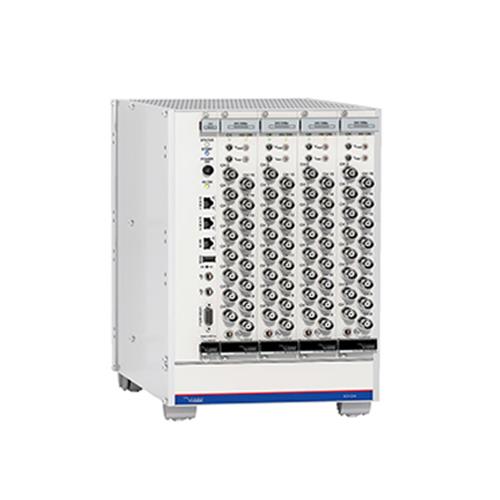

• up to 4 MMS High Voltage Power Supply Modules.
• 200 / 300 W power supply.
• wide range of HV-modules.
• compatible to CC24 / CC23 Controller boards with embedded iCS Linux Server.

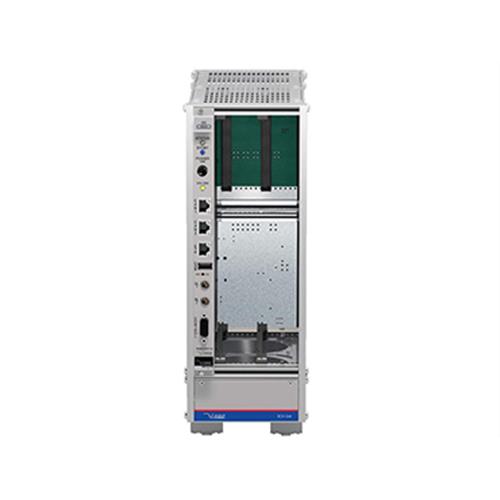

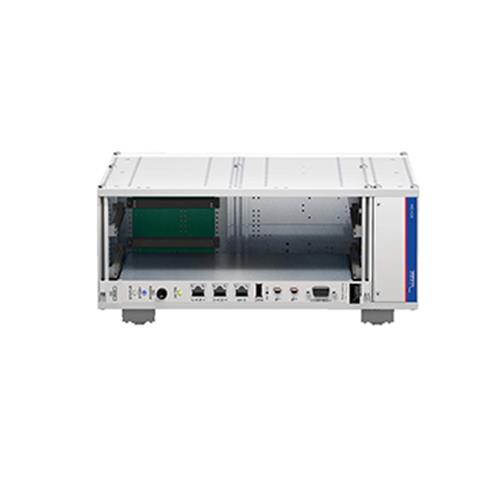

• vertical and horizontal desktop use (2 slot version).
Technical dataSPECIFICATIONS / SPEZIFIKATION
SPECIFICATIONS | ECH 242 | ECH 244 |
Slots | 2 x MMS modules and 1 x MMS controller | 4 x MMS modules and 1 x MMS controller |
Rated AC mains input | 100-240 VAC with PFC | 100-240 VAC with PFC |
AC power connector | IEC 320 C14 | |
DC module supply voltages | +24 V | |
DC output power HV module supply | 200W | 300W |
Cooling | Vertical, integrated fans , bottom air intake | |
Operation temperature | 0 … 50°C ambient without derating | |
Storage temperature | -20 °C ... 70 °C | |
Floating PE to DC 0V | Clamped ±47 V | Clamped ±47 V |
M.F.O.T. Maintenance Free Operation Time | Internal fans: 40°C ambient : 70,000 h,electronics: 25°C ambient : > 180,000 h | Internal fans: 40°C ambient : 70,000 h,electronics: 25°C ambient : > 200,000 h |
Dimensions (L/W/H) | 345 mm / 115 mm / 309.5 mm | 345mm / 226.2 mm / 309.5 mm |
Weight | 4kg | 5.4kg |
