DSPEC 50/50A and DSPEC 502/502A Digital Signal Processing Gamma Spectrometers
Advanced Model Features (DSPEC 50A and DSPEC 502A)
· ADC Conversion Gain up to 64k channels for expanded energy range applications!
· Digital Coincidence Timing for simplified Compton
Suppression and Cosmic Veto Systems with excellent performance!
· Web Page and Web Services Interfaces for Operating System independence!
Features Common to Standard and Advanced Models
· Single MCA (DSPEC 50/50A) and dual MCA (DSPEC 502/50A) versions.
· Highly stable against variations in count rate and temperature.
· Automated set-up: Automatic Pole Zero Adjust, Baseline Restorer, and Optimize.2
· Digital spectrum stabilizer.
· USB 2.0 and Ethernet (TCP/IP) connectivity
· High throughput capabilities for high count rate applications.
· Large front panel display for at-a-glance system status information.
· Support for all HPGe detector types, old and new.
· 16k ADC Conversion Gain
· “Loss Free” or “Zero Dead Time” (ZDT)3
· “Enhanced Throughput” Mode
· List Mode
· Ballistic Deficit and Charge Trapping Correction
· Low-Frequency Rejector (LFR)

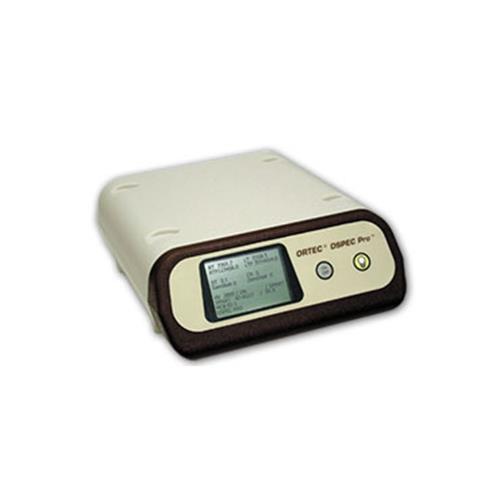

DSPEC Pro Digital Signal Processing Gamma Ray Spectrometer
The versatility of DSPEC Pro, brought about by the number of unique features and modes of operation, means that it is an ideal solution for a wide variety of applications. Its neat and compact packaging further enhance its applicability.
Digital spectrometers are inherently more stable than the analog variety of years gone by, and since the introduction of the original DSPEC, ORTEC has achieved the reputation as the supplier of instruments which represent the benchmark in stability, both relating to temperature and count rate.
DSPEC jr 2.0 Digital Signal Processing Gamma Ray Spectrometer
· Innovative ZDT™ "loss-free counting" correction including the uncertainty associated with the ZDT spectrum
· Enhance your spectral quality with the Low Frequency Rejector (LFR) technology
· Automate – Improve your laboratory productivity with integrated Sample Changer connections and controls
· Easy setup features including Automatic Pole Zero, Automatic Baseline Restorer, and "Optimize" features
· Front panel display of detector status and state-of-health information — SMART-1™ intelligent HPGe support
· Simple installation with true plug-and-play on USB
· Excellent temperature and count rate stability
· Full computer control of every function
· Support for HPGe and NaI radiation detectors

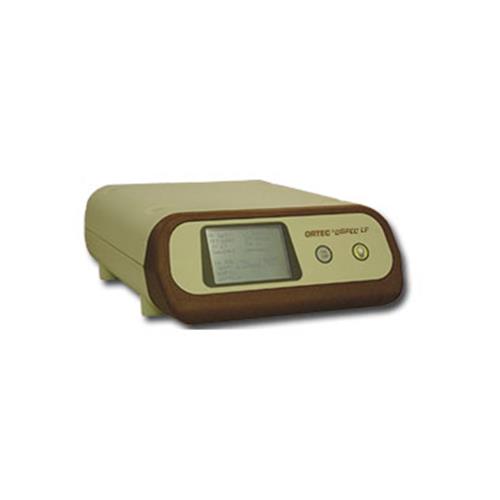

DSPEC LF Digital Signal Processing Gamma Ray Spectrometer
· Full-featured, digital spectrometer for HPGe and NaI detectors
· Automatic optimization for best detector performance (patented)
· ORTEC SMART-1™ intelligent HPGe support
· Continuous display of detector status and state-of-health information
· Fast data transfer for live spectrum display
· Easy installation with true plug-and-play on USB 2.0
· Excellent temperature and count rate stability
· MAESTRO MCA Emulation Software included
· Full computer control of every function
DSPEC LF is a member of the DSPEC USB family of digital technology gamma-ray spectrometers from ORTEC. It provides the same rock solid spectral stability with variation in temperature and count rate and retains many of the valuable attributes of the other two models. Many environmental and radiochemistry laboratories will find this instrument to be the best MCA for day-to-day sample counting with laboratory HPGe or NaI detector systems.
