Low cost

Compact

Low operation life time

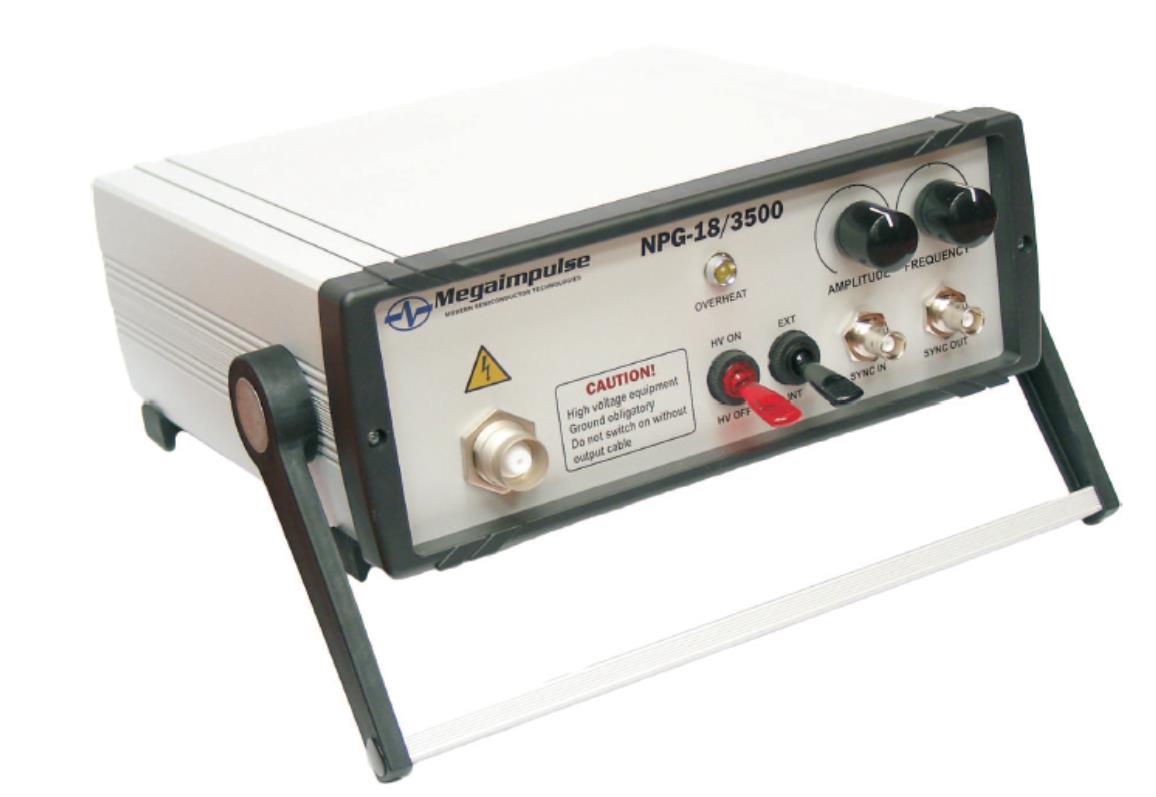

1-   power switch

2-   output connector

3-   power supply and fuse

4-   high voltage ON/OFF switch

5-   EXT/INT synchronization

6-   SYNC IN(BNC type)

7-   Overheat LED

8-   Amplitude regulation knob

9-   SYNC OUT(BNC type)

10-  Frequency regulation knob

11-  Fans

12-  Ground terminal

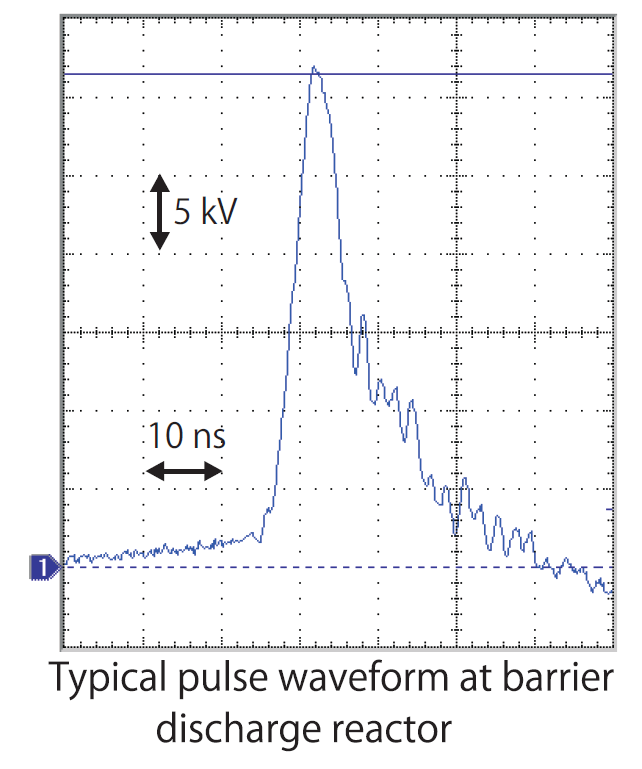

Pulse amplitude：regulated 12~20kv at matched 75Ω load up to 40kv at discharge reactor

Pulse polarity：positive（NPG-18/3500）/Negative（NPG-18/3500N）

Pulse rise time：less than 4ns

Max pulse energy：30mJ

Peak pulse power：5.3MW

Repetition rate：from single pulse^*) to 3.5 kHz

Inherent delay：1μs or less

Jitter（RMS）：less than 1ns

Special output connector for HV applications internal and external triggering BNC connectors for external triggering and pulse monitoring.

^*) single pulse mode in case of external triggering only.
