无偏置电阻的双面/直流条检测器

产品详情



All double sided devices can be fabricated as single sided devices using either the double sided junction or ohmic side *2

*2  Some modifications may be necessary to the detector package.



DESIGN

JUNCTION

OHMIC

ACTIVE AREA
  (mm2)

CHIP DIMENSIONS
  (mm2)

JUNCTION WINDOW

OHMIC WINDOW

WAFER
  SIZE
  (inch)

PACKAGE

STRIPS

PITCH
  (µm)

STRIPS

PITCH
  (µm)

Implant

Metal

Implant

Metal

BB8

16

1250

16

1250

20.00 x 20.00

22.90 x 22.90

2/7/9

M/P/T

2/7/9

M/P/T

4

Range of designs in different   materials.

BB2

24

1000

24

1000

24.00 x 24.00

26.00 x 26.00

2

M

2

M

4

Standard FR4

BB5

80

400

80

400

31.95 x 31.95

37.60 x 37.60

2

M

2

M

4

Standard FR4

BB15

64

1172.5

4

10087.5

40.3 x 75.00

43.30 x 78.00

2

M

2

M

4

Standard FR4

W1

16

3100

16

3100

49.50 x 49.50

53.78 x 53.78

2/7/9

M/G/P/T

2

M

4

Range of designs in different   materials.

W2

100

500

100

500

49.95 x 49.95

53.00 x 53.00

2

M

2

M

4

Chip Only

BB12

160

390

160

390

62.35 x 62.35

66.35 x 66.35

2

M

2

M

4

Standard FR4

BB7

32

2000

32

2000

63.96 x 63.96

67.975 x 67.975

2/7/9

M/P/T

2

M

4

Range of designs in different   materials.

BB4

64

1000

64

1000

63.96 x 63.96

66.75 x 66.75

2

M

2

M

4


TTT6

64

1470

64

1470

93.20 x 93.20

99.20 x 99.20

2

M

2

M

6

Chip
   Only

TTT4

128

760

128

760

97.22 x 97.22

100.42 x 100.42

2/7/9

M/G/P/T

2

M

6

Standard FR4

TTT11

128

717

128

742

91.716 x 94.916

95.75 x 98.75

2

M

2

M

6

Standard FR4

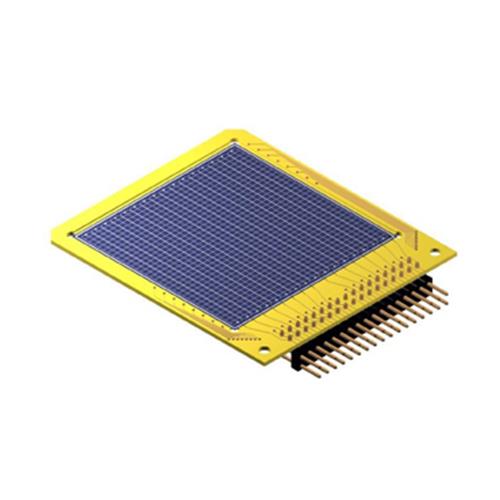

BB7(DS) 2M/2M PCB Assembly.

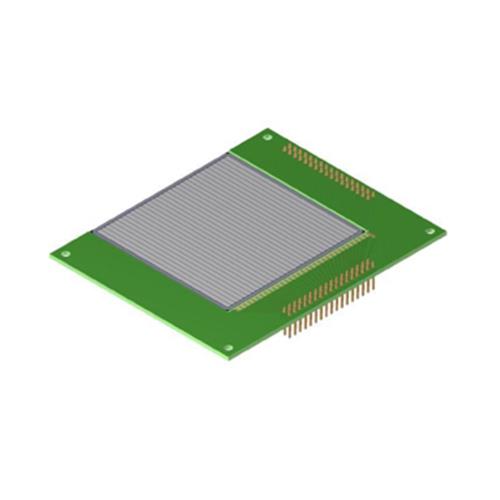

    Design W1(DS)-300 7G/2M on a standard FR4 transmission package*.

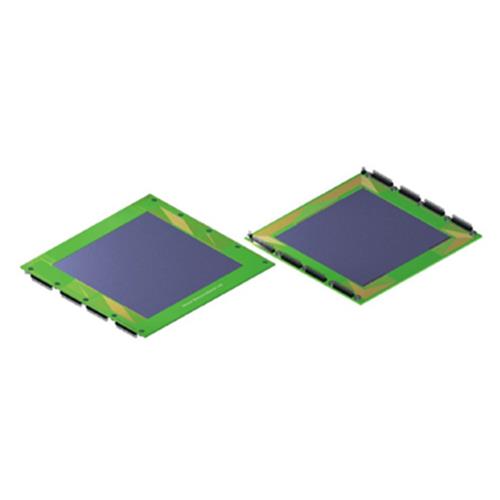

DESIGN TTT1-300 Double Sided PCB

Double Sided PCB

Biasing via a strip header Samtec Part No. FTSH-102-01-L-D

Readout from both ends of strip via Samtec connector

PCB Dimensions 133 x 128 mm2











DESIGN TTT1-300 Double Sided PCB

Double Sided PCB

Biasing via a strip header RS 334-555

Readout from one end of strips via

Hirose connector

PCB Dimensions 220 x 128 mm2
