· High efficiency · Room temperature operation · High energy resolution · Wide detection energies range · Gamma-radiation spectroscopy · Portable and field spectrometers · Environmental monitoring · Nuclear industry · Home land security |
|

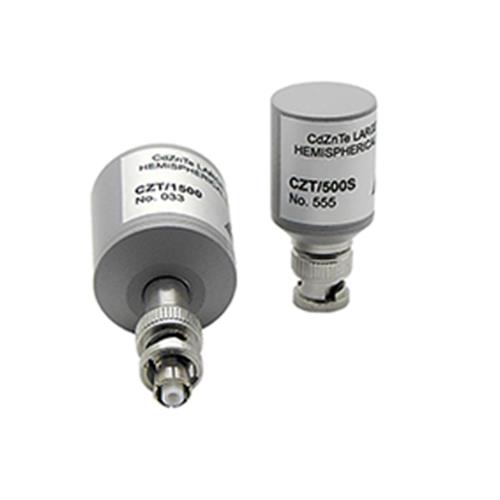

The CZT/500 and CZT/1500 are room temperature operating semiconductor CdZnTe gamma-radiation quasi-hemispherical detectors. Large sensitive volume of these detectors ensures high registration efficiency in a wide range of gamma-radiation energies. The CZT/500 and CZT/1500 are intended for application with miniature low noise charge sensitive preamplifiers PA101C or PA101C/HV or with other similar charge sensitive preamplifiers. These detectors are designed for application in portable spectrometers for various applications. |
| Basic
detector type: CdZnTe quasi-hemispherical detector detector high voltage polarity: positive range of recommended operation temperature: at least 0 to 50 °C Dimensions CZT/500: length (without connector) 33 mm，diameter 23 mm CZT/1500: length (without connector) 36 mm，diameter 32 mm
Connector CZT/500: BNC CZT/1500: SHV Weight CZT/500: 40 g CZT/1500: 70 g
|
