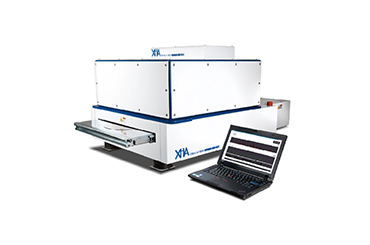

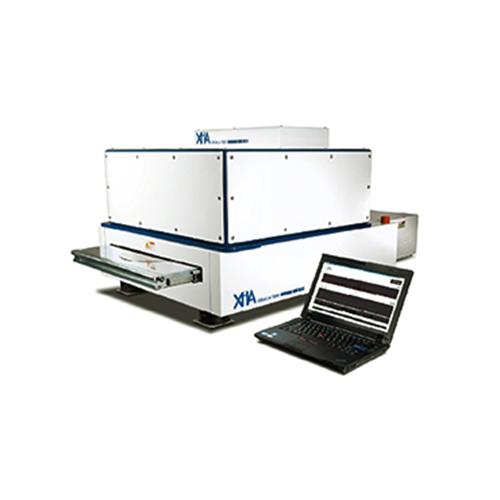

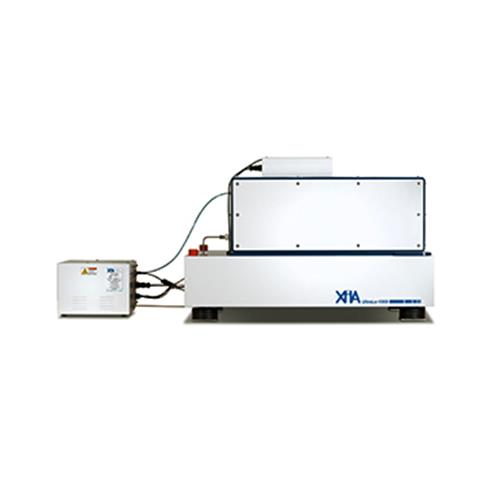

The UltraLo-1800 is a windowless, ultra low background alpha particle counter designed to measure the alpha particle e-missivity of solid materials. The system employs the technique of electronic back-ground suppression, which drives achievable ba-ckground rates to 0.0001 alphas/cm2/hr and below. This is a factor of 50 or more bette-r than can be achieved by the conventional proportional counter systems that are currently available. With the UltraLo-1800, it become-s feasible to measure samples having emissivities in the 0.001 to 0.0005 alpha/cm2/hr range in fewer than 10 hours, and to measure em-issivities below 0.0005 alpha/cm2/hr in fewer than 100 hours. |
|
Counting system includes:
|
|
Performance category | Specification |
Required counting time for measurement of ULA (0.001) sample1 | (50%) 6 hrs, (25%) 24hrs, (12.5%) 90 hrs -- (measurement accuracy) time |
Required counting time for measurement of LA (0.01) sample1 | (50%) 30 min, (25%) 2.5 hrs, (12.5%) 9 hrs -- (measurement accuracy) time |
Typical counter efficiency | > 90% of 2π |
Energy resolution (230Th source) | < 9% FWHM (at 4.6 MeV) |
Energy sensitivity range | 1-10 MeV |
Sample sizes (typical min - max) | 300mm wafer (707cm2) - 1800cm2 |
1 – Sample assumed to be 300mm wafer (count times drop by factor of 2.5 when using max sample area)

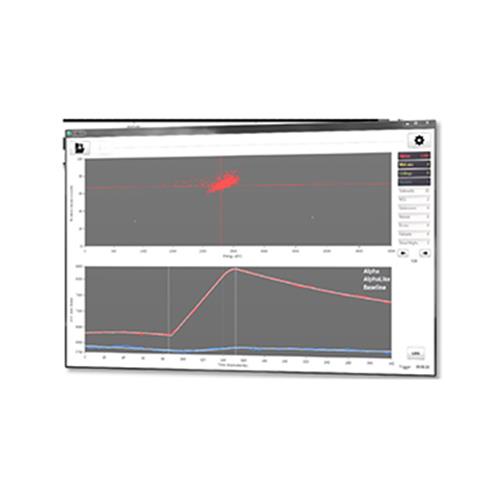

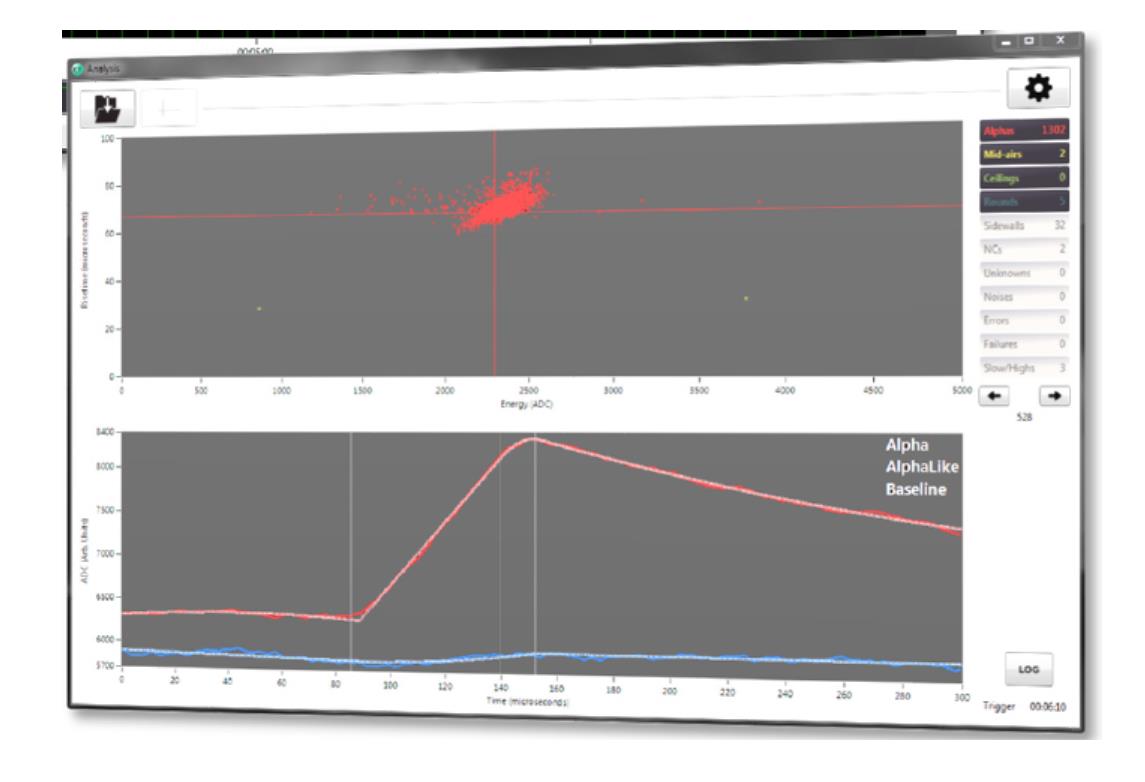

| Highlighted Features Robust Data Management: Easily access and review both current and historical measurement data. Data Export: Generate and save datasets in convenient ASCII format. Report Generation: Measurement results saved to PDF reports. System Health Information: Monitor system noise levels, gas flow rate, operating bias and more. |
Requirements | Specification |
Minimum sample size (typical) | 300mm wafer (707cm2) |
Maximum sample size | 1800cm2 |
Maximum sample weight | 20 lbs (9 kg) |
Maximum sample thickness | 0.25 in (6.3 mm) |
Counting Gas | Argon |
Gas pressure | 21psi (150kPa) ±5% |
Line Voltage | 100-240 (VAC) 50/60 Hz |
Power Consumption (Instrument) | 50 W (100 W maximum) |
Power Consumption (Laptop) | 30 W |
System dimensions (L x W x H) | 65 in x 35 in x 27 in (165 cm x 89 cm x 69 cm) |
Weight | 360 lb (163 kg) |
