单面积硅探测器

产品详情






Single sided single area circular active area with circular, square or multi faceted outer chip dimensions.





DESIGN

ACTIVE AREA
DIAMETER
(mm)

CHIP
DIMENSIONS
(mm2)

JUNCTION WINDOW

OHMIC WINDOW

WAFER SIZE
(inch)

PACKAGE




Implant

Metal

Implant

Metal



MSD003

3.00

5.00 x 5.00

2

M

2

M

4

Chip Only

MSD003810

3.810

Ø 8.69

2/7/9

M/T/P

2

M

4

Standard FR4

MSD004

4.00

Ø 8.00

2/7/9

M/T/P

2

M

4

Black FR4

MSD004572

4.572

Ø 6.912

2/7/9

M/T/P

2

M

4

Chip Only

MSD005

5.00

7.00 x 7.00

2/7/9

M/T/P

2

M

4

Black FR4

MSD062

6.20

8.20 x 8.20

2/7/9

M/T/P

2

M

4

Chip Only

MSD007*

7.00

10.00 x 10.00

2/7/9

M/T/P

2

M

3 & 4

Range of Black
FR4 Designs

MSD007

7.00

Ø 11 .00

2/7/9

M

2

M

4

Black FR4

MSD008*

8.00

10.0 x 10.0

2/7/9

M/T/P

2

M

4

Black FR4

MSD008

8.00

Ø 12.00

2/7/9

M

2

M

4

Black FR4

MSD009

9.00

11.00 x 11.00

2

M

2

M

4

Chip Only

MSD010

10.00

13.00 x 13.00

2/7/9

M/T/P

2

M

4

Chip Only

MSD011

10.00

12.00
Flat-To-Flat
(8 Sides)

2

M

2

M

6

Ceramic

MSD012

12.00

Ø 16.00

2/7/9

M/T/P

2

M

6

Black FR4

MSD017

16.80

Ø 20.80

2/7/9

M

2

M

4

Black FR4

MSD018

18.00

21.00
Flat-To-Flat
(8 Sides)

2/7/9

M/T/P

2

M

4

Black FR4

MSD020

20.00

22.00 x 22.00

2

M

2

M

6

Chip Only

MSD020

20.00

Ø 24.00

2/7/9

T/P

2

M

4

Range of Black
FR4 Designs

MSD022

21.70

Ø 25.70

2/7/9

M

2

M

4

Black FR4

MSD023

23.00 –31.00

Ø 27.00 – 35.00

2/7/9

T/P

2

M

4

Black FR4

MSD024

24.50

28.76
Flat-To-Flat
(16 Sides)

2

M

2

M

6

Housed in a metal case

MSD026

26.00

Ø 30.00

2/7/9

M

2

M

4

Black FR4

MSD028

28.14

30.91
Flat-To-Flat
(16 Sides)

2

M

2

M

6

Housed in a metal case

MSD030

30.00

32.00 x 32.00

2

M

2

M

4

Chip Only

MSD032

32.00

Ø 36.00

2/7/9

M

2

M

4

Black FR4

MSD035

35.00

39.00
Flat-To-Flat

2/7/9

G

2

M

4

Range of Black
FR4 Designs

MSD040

40.00

44.00
Flat-To-Flat
(16 Sides)

2

M

2

M

4

Flexi Rigid Package

MSD050

50.00

54.66
Flat-To-Flat
(16 Sides)

2


2

M

6

Housed in a metal case

MSD085

85.00

90.00
Flat-To-Flat
(16 Sides)

2/7/9

M/T/P

2

M

4

Black FR4



DESIGN MSD SERIES

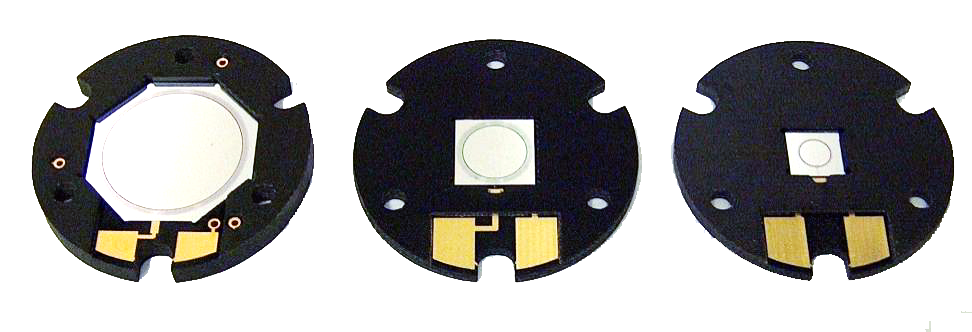

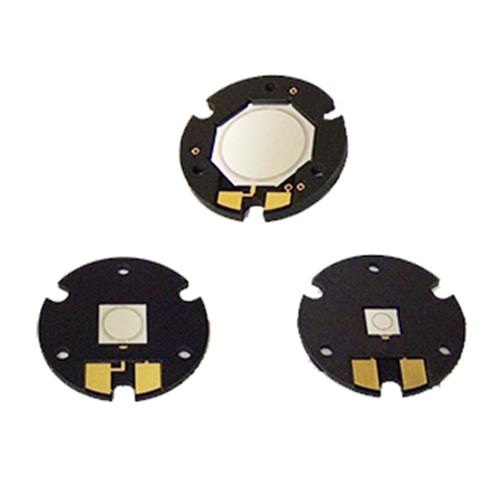

MSD018, MSD007 and MSD004 assemblies supplied to JAXA are mounted on PCBs with common mounting positions

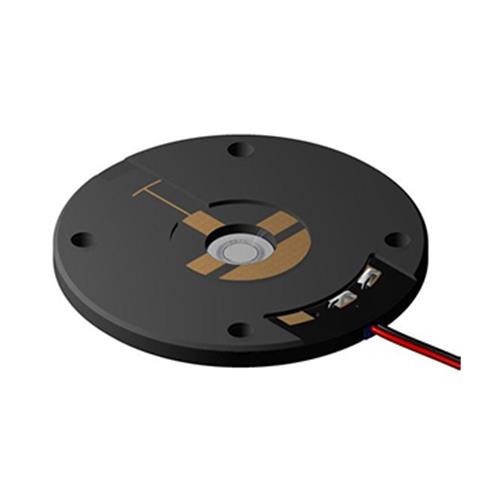

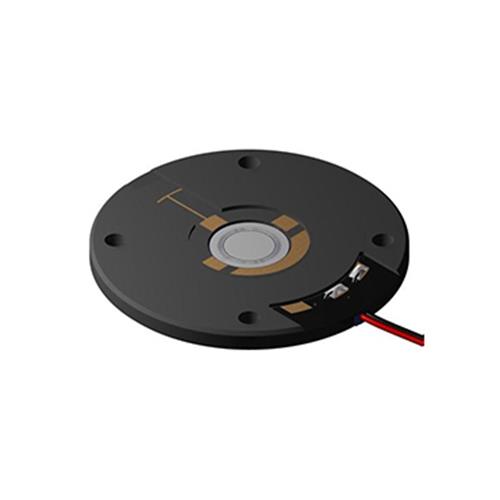

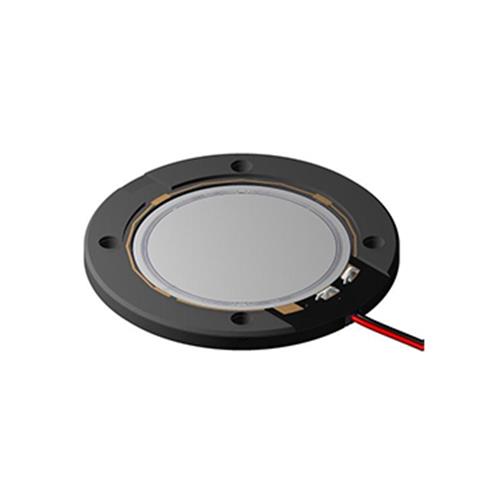

MSD004 2M/2M, MSD007 2M/2M and MSD026 2M/2M assemblies supplied with alternative packages

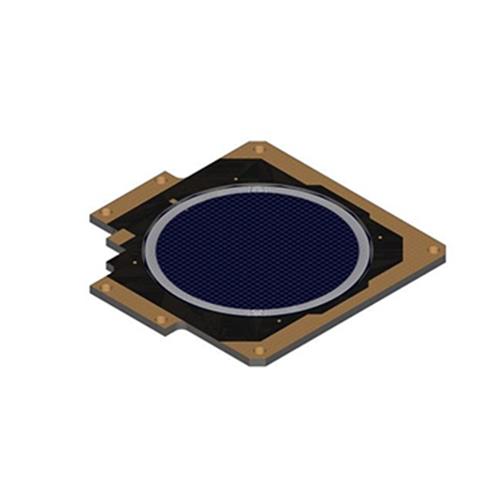

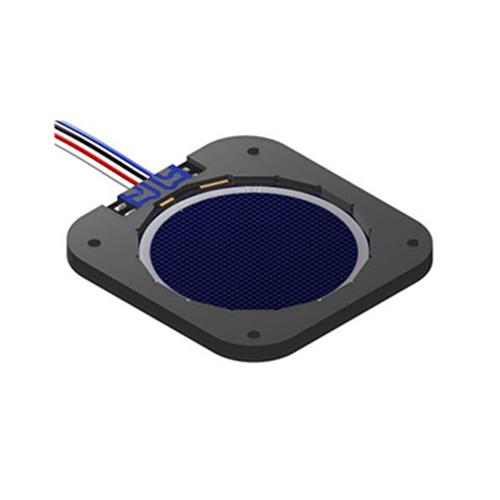

 Many detector have a range of packages e.g. MSD035 9G/2M used by the COMPASS and Crater Projects

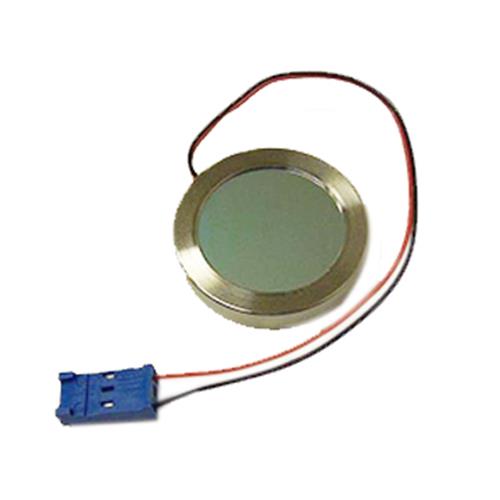

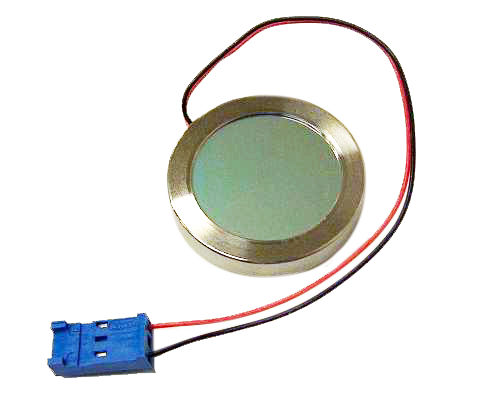

                         MSD024 2M/2M detector supplied as an alpha monitor.                              MSD085 2M/2M, the largest of the circular single areas.
