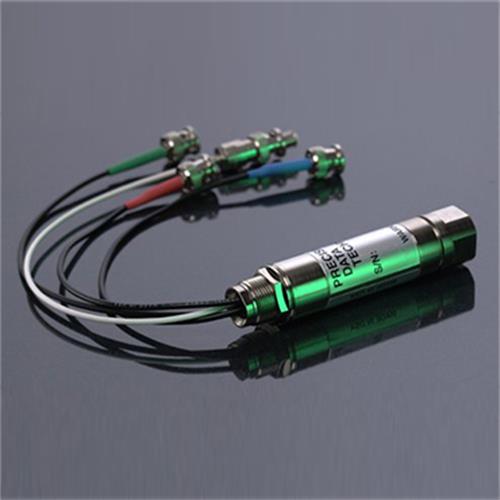

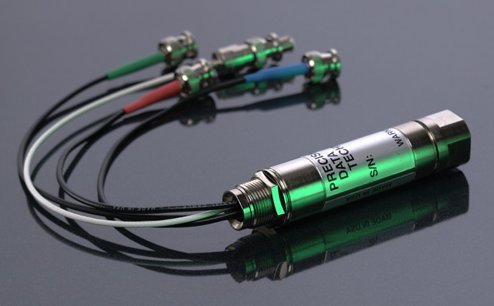

PDT150A –A Water-tight Module

 Neutron Pulse Monitoring Module is equivalent to the PDT110A, but is designed for a watertight environment.

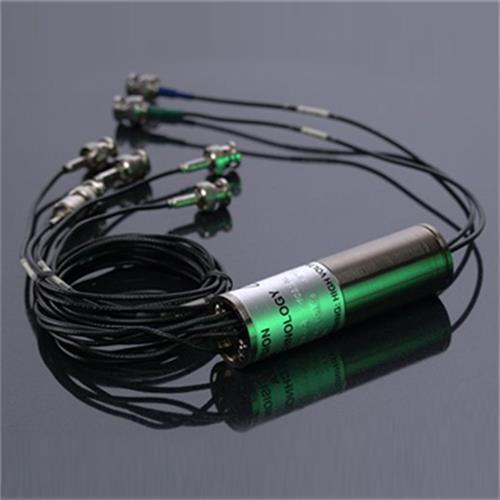

PDT210A –A Dual Channel Module

Neutron Pulse Monitoring Module contains two completely separate channels, each containing a charge sensitive amplifier with 50 ohm TTL drive capability. Two detectors can be operated simultaneously.

Cable Kits --Precision Data Technology provides two prepackaged cable kits for quick and easy assembly of its Neutron Detector Pulse Counting Modules--the CKA and the CKB. If neither of these kits suits your needs.

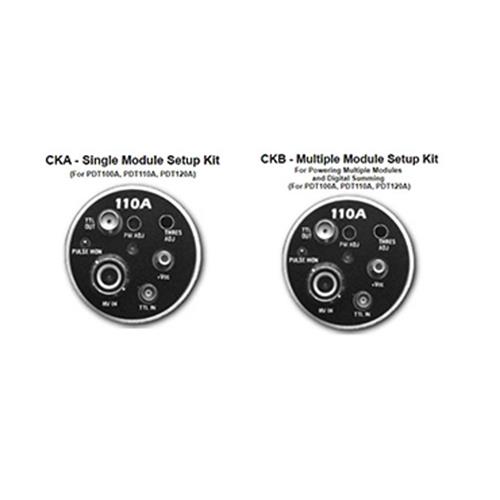

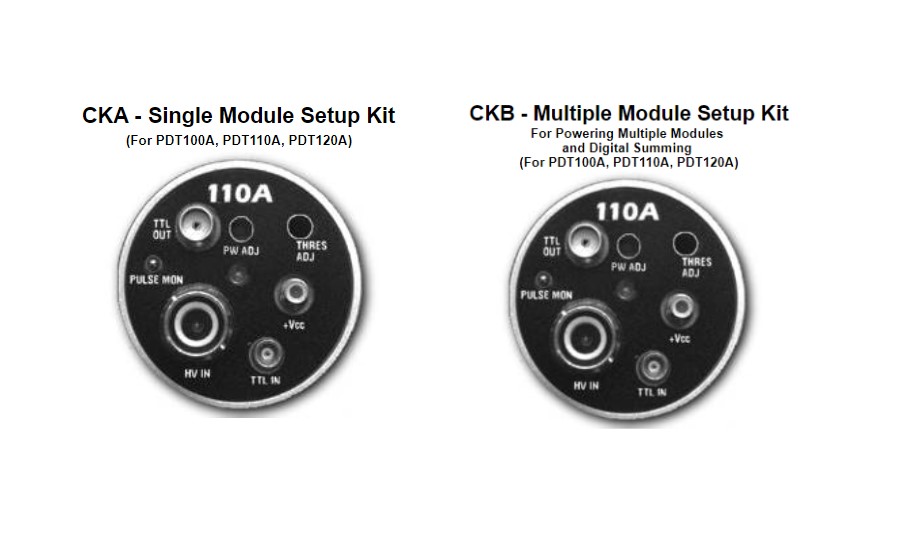

CKA - Single Module Setup Kit
(For PDT100A, PDT110A, PDT120A)

One(1) Non-conducting screwdriver.

One(1) Cable connection to "+Vcc" which terminates to a BNC connector on the opposite end

One(1) Cable connection to "TTL OUT" which terminates to a BNC connector on the opposite end.

One(1) Cable connection to "HV IN" which terminates to SHV connectors on both ends.

CKB - Multiple Module Setup Kit
For Powering Multiple Modules and Digital Summing
(For PDT100A, PDT110A, PDT120A)

One(1) Non-conducting screwdriver.

One(1) "+Vcc" Cable for daisy-chaining power between PDT series modules.

One(1) Cable for connecting between "TTL OUT" and "TTL IN" of two separate PDT100A, PDT110A or PDT120A modules. This cable provides digital pulse summing capability using multiple PDT110A instruments.

One(1) Cable connects to the "HV IN" SHV connector. This cable terminates to SHV female connectors on each end of the cable.

One(1) SMB T-Connector for "+Vcc" interconnections.

One(1) SMB T-Connector for "HV IN" interconnections.
