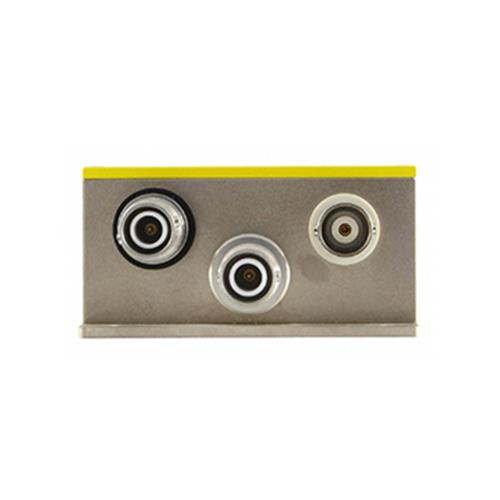

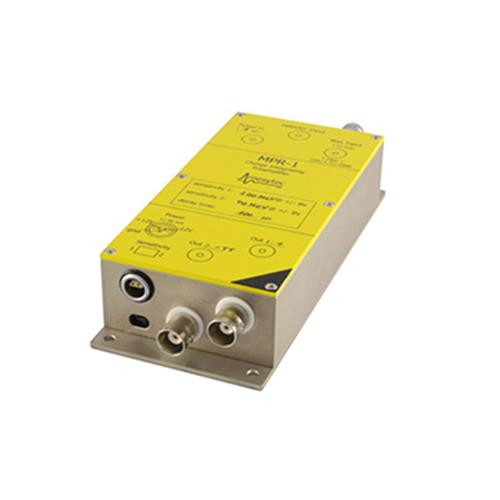

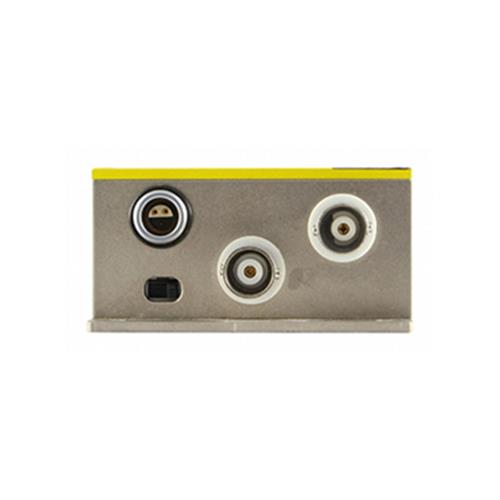

mesytec MPR-1 is a charge integrating preamplifier module. It provides two outputs which can be jumpered to different or same polarity. One can be configured as timing filter output. Both can drive terminated BNC cables. The sensitivity can be changed by a factor of 5 via front panel switch. This helps to get larger signals at low charge deposition. MPR-1 is available with Lemo, BNC, MHV and SHV connectors.
Features:
• Ni-plated, fully shielded case.
• ESD input protection.
• Positive and negative input charge.
• Pulser input.
• Bias voltage up to ±3000 V.
• Two outputs (selectable polarity, one can be configured as timing filter output).
• Strong output driver for 50 Ω.
• (optional 93 Ω) termination.
• Fast risetime (t < 12 ns).
• Two sensitives (switch selectable).
• Low power.
Technical Data
Different standard ranges are available.
Range in energy deposition in silicon detectors.
Divide by 3.6 to get number of electrons (1 GeV = 2.8*108 electrons).
All values for ±8 V output, left number for switch position low sensitivity, right number for high sensitivity.
• 200 MeV type: 200 MeV / 40 MeV → low noise (for energies up to 200 MeV [Si] = 9 pC).
• 1 GeV type: 1 GeV / 200 MeV → Si detectors in heavy ion experiments or PMTs (for energies up to 1 GeV = 45 pC).
Other ranges on request.
Preamplifier
• ESD protected
• Positive and negative charge can beamp lified equally.
• Open loop gain typ 60000 @ 1 pF integration capacity
• Temperature drift < ±50 ppm /°C
• Nonlinearity < 50 ppm
• Energy rate capacity at 200 MeV:2*106 MeV /s, at switch 40 MeV:4*105 MeV /s.
Risetime of energy and timing output.
Detector +cable capacity | Signal risetime |
0 pF | 12ns |
100 pF | 25ns |
330 pF | 50ns |
