NHR series NIM标准高压电源

产品详情



DESCRIPTION

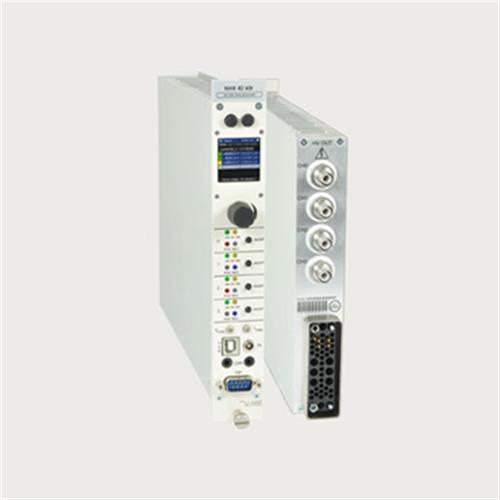

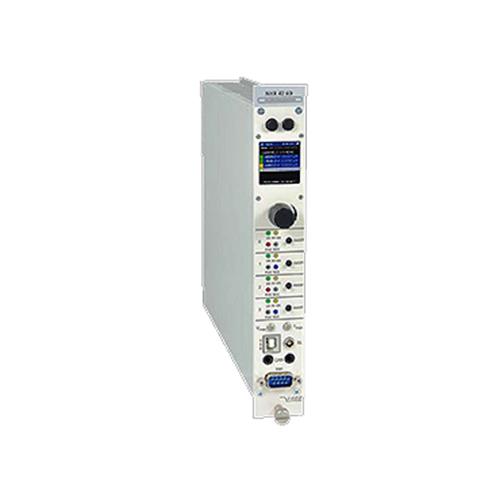

       The iseg NHR modules are multi-channel high voltage power supplies in 1/12 NIM standard cassette format. The iseg technology combines ultra precise high voltage generation and measurement in pico amp range.

The NHR series provides up to 4 channels, each with an independent voltage and current control and electronically reversible polarity. The 6 kV channel provides a maximum of versatility:with three electronically switchable HV-generation modes it can supply 4 mA up to voltages of 2 kV, 3 mA up to 4 kV or 2 mA up to 6 kV. Alternatively the NHR can be equipped with cost efficient 2 kV / 6 mA channels with one HV output mode.

Several NHR modules can be daisy-chained by CAN and controlled with a single USB connection or by optional iseg iCS system via Ethernet. The module is made of best components such as 24 bit ADC and 20 bit DAC, an excellent front panel control with TFT display plus comprehensive security features.


  • 4 channels, 2 / 6 kV versions

  • electronically switchable polarity

  • 6 kV channel with switchable HV-modes:up to 2 kv / 4 mA, 4 kV / 3 mA or 6 kV / 2 mA

  • ultra low ripple and noise

  • front panel control with 1.44“ TFT display

  • hardware voltage and current limits, control&measure per channel

  • USB and CAN interface, programmable parameters





SPECIFICATIONS


NHR   STANDARD

NHR HIGH   PRECISION

Polarity

electronically switchable

Ripple and noise

< 10 mV

< 2~3 mV

Temperature coeffi cient

50 ppm / K

30 ppm/K | opt. 10 ppm/K (TC)

Resolution voltage   setting

2 • 10-6 • Vnom

Resolution current   setting

2 • 10-6 • Inom

Resolution voltage   measurement

2 • 10-6 • Vnom

1 • 10-6 • Vnom

Resolution current   measurement - full range

2 • 10-6 • Inom

1 • 10-6 • Inom

Resolution current   measurement - 2nd range

n/a

50 pA [Iout < 20μA]

Accuracy voltage   measurement *

± (0.01 % • Vout + 0.02 % • Vnom)

± (0.01 % • Vout + 0.01 % • Vnom)

Accuracy current   measurement *- full range

± (0.01 % • Iout + 0.02 % • Inom)

± (0.01 % • Iout + 0.01 % • Inom)

Accuracy current   measurement *- 2nd range

n/a

± (0.01 % • Iout + 4 nA)

Rate of voltage change

1 • 10-6 • Vnom/s up to 0.2 • Vnom / s | opt. up to   0.75 • Vnom / s

HV connector

SHV

Case

1/12 NIM cassette

Protection

INHIBIT, Safety loop, short circuit, overload, hardware   V/I limits

*) All specifi cations guaranteed from 1% ∙   Vnom < Vout < Vnom

ORDER   & OPTIONS

OPTION

ORDER INFO

VOLTAGE CORRECTION BY   TEMPERATURE

VCT

LOWER TEMP. COEFFICIENT

TC

LOWER CURRENT (100 μA,   high precision version only)

L

INHIBIT - DOWN / UP

ID / IU
