DESCRIPTION

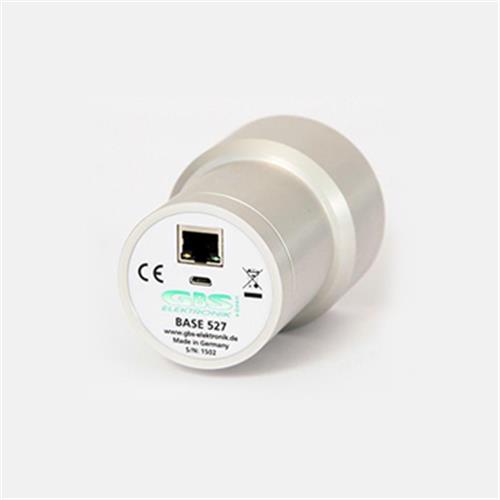

Together with a detector, the Base527 Series are complete spectrometer with integrated bias supply and preamplifier for PMT based detectors. It may be used for gamma-ray spectroscopy applications with NaI, LBC, SrI2 or similar scintillation detectors. The Base527 modules are suitable for detectors with 14-pin (standard version) or 12-pin photomultiplier tubes like the Hamamatsu R6231, R1306 (Jedec B14) or R9420, 9102B, XP2060B (Jedec B12). Special socket options are available on request.
The Base527 series are categorized in their respective computer interfaces and comes either with USB- (Base527), Ethernet & USB- (Base527E) or with a RS485 (Base527R). The whole module is powered from the USB interface port, or by “Power over Ethernet”. Due to the integration of all hardware components for a gamma spectroscopy system in one package, there is only one cable necessary to connect the system to a computer or network switch. The Base527 can be operated with our free of charge software programs, available for the entire MCA527 product family, such as WinSpec or WinMCS.
KEY FEATURES | BENEFITS |
Up to 4k channel resolution | • High performance gamma spectroscopy with PMT- based detectors |
Very low power consumption of 0.4W | • Long time operation with battery power sources • Powering direct via computer interface |
Available with 14-pin or 12-pin-socket, Special pin assignment versions upon request | • Special and favored PMT can be applied |
Functional tripod & beaker optional available, Fixed cable version available | • Very good operability and mobility • Robust connection, avoids loosening |
Fully digital signal processing | • All parameter are computer adjustable • Allows a wide range of filter settings |
Eloxed aluminum housing | • Excellent electrical shielding and robustness |
Technical Specification
Base527 Series
Photomultiplier Tube Setting | PMT Amplifier Unit | ||
All PMTs for the JEDEC B14A socket are supported (like the Hamamatsu R6231, R1306) Kindly refer to our internet site for the variants of socket datasheet. | Type | Charge sensitive preamplifier for photomultiplier tubes | |
Spectrometric Performance | Gain Steps | 10, 50 | |
Example： Resolution: 2k channels, Cs137 sample, measured with NaI Detector size: 63mm x 63mm | (FWHM) <5.8 % | Integrated bias supply | 0V to 1000V (negative polarity on request) |
Throughput into memory(input rate 150kcps,0.2μs shaping time) | > 100.000cps | Input- and bias voltage monitoring | √ |
Operation Modes | |||
PHA (Pulse Height Analysis) | √ | ||
MCS (Multichannel Scaling) | √ | Power supply | |
Sample Mode (Transient Record) | √ | Base527 (μUSB Version) | via USB PC-Port, ≤500mA |
Oscilloscope Mode | √ | Base527E (Ethernet Version) | - Power over Ethernet ≤ 2W - USB PC-Port ≤ 500mA - USB wall-adapter ≤ 500mA |
Firmware Repeat Mode | √ | Base527R (RS485 Version) | via USB–A PC port (Adapter) |
Digital Signal Processing | Power consumption | 0.4W | |
Trigger Filter | double differential filtering | Computer Interface | |
Differential non-linearity | <1% (for 2k, @ 1μs shaping time) | Base527 (μUSB Version) | USB 2.0 compliant |
Pile Up Rejection | √ | Base527E (Ethernet Version) | - Ethernet 10/100Mbit, RJ45 - μUSB 2.0 compliant |
Pulse Pair Resolution | ~400ns | Base527R (RS485 Version) | - RS485 compliant - USB 2.0 compliant (adapter) |
Trigger Threshold Adjustment | automatically / manually | ||
Shaping Time | 0.1μs to 2μs, step 0.1μs | Mechanical | |
Flat Top Time | 0μs to 15μs, step 0.1μs | Dimensions ( Ø x L ) | 72mm x 100mm |
Channel Splitting | 128, 256, 512, 1024,2048, 4096 | Installed Pin Socket | JEDEC B14A (standard version) |
Fine Gain Adjustment | 0.5 to 6.5, step 0.0001 | Weight | ~400g |
Base Line Restorer | BLR with fixed averaging | Environmental Conditions | |
Pole Zero Adjustment | Decay time down to 40μs can be compensated | Operation Temperature Range | 0°C – 50°C |
Peak Stabilization Modes | standard mode | Humidity | ≤90%, non condensing |
Analog Digital Converter | IP Protection Class | IP42 | |
Sample Rate | 10MS/s | ||
Resolution | 14bit | ||
Integral non-linearity | ≤0.05% | ||
