EJ-254 载硼塑闪

产品详情

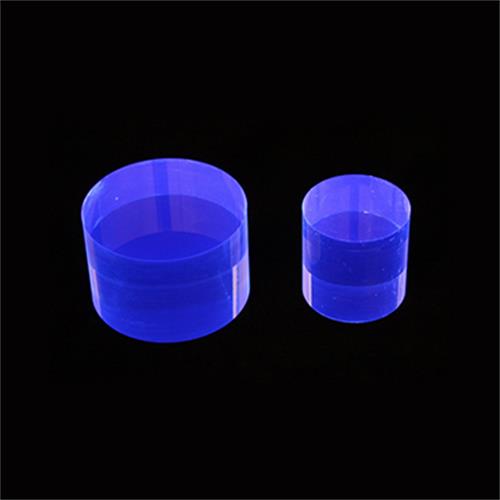

This blue-emitting plastic scintillator contains natural boron at concentrations up to 5% by weight. It is a clear, stable plastic with physical properties similar to those of the standard Eljen plastic scintillators. Its principal applications are fast neutron spectrometry and thermal neutron detection. The primary function of the boron is to provide a unique scintillation signal for low energy neutrons. The standard formulation contains 5% boron, and practical boron concentrations down to 1% are available.

The isotopic fraction of 10B in natural boron is 19.9%, meaning that the 5% loaded plastic contains nearly 1% of 10B. The neutron capture reaction on the boron 10B(n,αγ)7Li  has a Q value of 2.78 MeV of which 2.34 MeV is shared by the alpha and lithium particles. This energy is fully captured in the plastic to produce a scintillation signal approximately equivalent in amplitude to that of a 76 keV electron. For delayed coincidence timing of the capture of fast neutrons, the time delay from the prompt recoil-proton pulse is typically 2.7 µs for 5% B-nat plastics. This delay is inversely proportional to the boron loading.

Reference: D.M. Drake et al., Nucl. Instr. & Meth., A247, 576-582 (1986)




 PROPERTIES

EJ-254-5%

EJ-254-2.5%

EJ-254-1%

Light   Output (% Anthracene)

48

56

60

Scintillation   Efficiency (photons/1 MeV e-)

7,500

8,600

9,200

Wavelength   of Maximum Emission (nm)

425

425

425

Rise   Time (ns)

0.85

0.85

0.85

Decay   Time (ns)

1.51

1.51

1.51

Pulse   Width, FWHM (ns)

2.24

2.24

2.24

No. of H   Atoms per cm3 (x1022)

5.18

5.17

5.16

No. of C   Atoms per cm3 (x1022)

4.44

4.55

4.62

No.   of 10B Atoms per cm3 (x1020)

5.68

2.83

1.14

No. of   Electrons per cm3 (x1023)

3.33

3.33

3.33

Density   (g/cc)

1.026

1.023

1.021

Polymer   Base

Polyvinyltoluene

Refractive   Index

1.58

Softening   Point

75°C

Vapor   Pressure

Vacuum-compatible

Coefficient   of Linear Expansion

7.8 x 10-5 below   67°C

Light   Output vs. Temperature

At 60°C, L.O. = 95%   of that at 20°C

No change from 20°C   to -60°C

Temperature   Range

-20°C to 60°C



Chemical Compatibility

Attacked by:  Aromatic solvents, Chlorinated solvents, Ketones, Solvent bonding cements, etc.

Stable in:    Water, Dilute acids and alkalis, Lower alcohols, and Silicone greases.

It is safe to use most epoxies with this scintillator.
